SAK-TC357TH-64F300S AB

High performance radar and autonomous driving microcontroller
Data Sheet
package
board
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SAK-TC357TH-64F300S AB
SAK-TC357TH-64F300S AB
Data Sheet

Product details

  • # of cores / lockstep cores
    3/2
  • A/D Input Lines
    32
  • ASIL/SIL support
    ASIL-D/SIL-3
  • CAN Nodes
    8
  • Classification
    ISO 26262-compliant
  • DMA Channels
    64
  • DSP Functionality
    yes
  • eMMC
    no
  • External Bus Interface
    no
  • Family
    AURIX™ 2G
  • Floating Point Unit
    Yes
  • Hardware Accelerator
    2xSPU
  • I/O Operation Voltages
    3.3 V to 5 V
  • LIN
    4
  • Number of ADC Modules
    2
  • On-chip Clock Generation
    Yes
  • On-chip Voltage Regulator
    Yes
  • Oscillator Watchdog
    Yes
  • Program Memory
    4 MByte
  • Real Time Clock
    Yes
  • SPI
    4
  • SRAM (incl. Cache)
    3664 kByte
  • Temperature
    -40°C - +125°C
  • Type of Memory
    Flash
  • Watchdog Timer
    yes
Recommended
OPN
TC357TH64F300SABKXUMA2
Product Status active and preferred

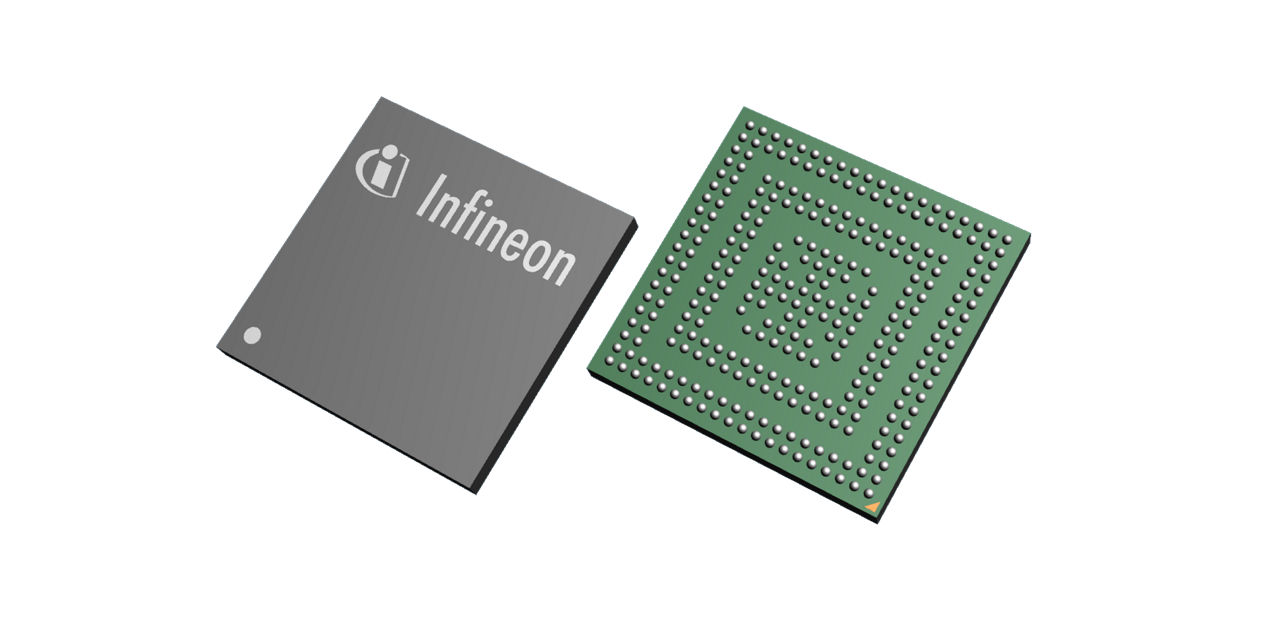

Infineon Package
PG-LFBGA-292
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-LFBGA-292
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The SAK-TC357TH-64F300S AB belongs to the TC35xTA family . In terms of performance, the radar application high-runner TC35xTA offers 3 cores at 300 MHz, up to 3.6 MBytes embedded RAM, and consumption below 2 W. Its mirrored embedded flash banks (2x 2 MB) support A/B swap capabilities.

Features

  • 3 TriCore™ running at 300 MHz
  • 4 MB flash with ECC protection
  • 3.1 MB SRAM with ECC protection
  • 1 Gbit Ethernet
  • 8x CAN FD 1x I²C, 4x ASCLIN, 4x QSPI
  • 8x 400 Mbit/s LVDS Radar Interface
  • 2x SPU for Radar signal processing
  • eVita fullHSM (ECC256 and SHA2)
  • BGA-292 package
  • ISO 26262 ASIL-D
  • Temperature: -40°C to 125°C
  • Single voltage supply 5 V or 3.3 V
