SAK-TC234LC-24F133F AC

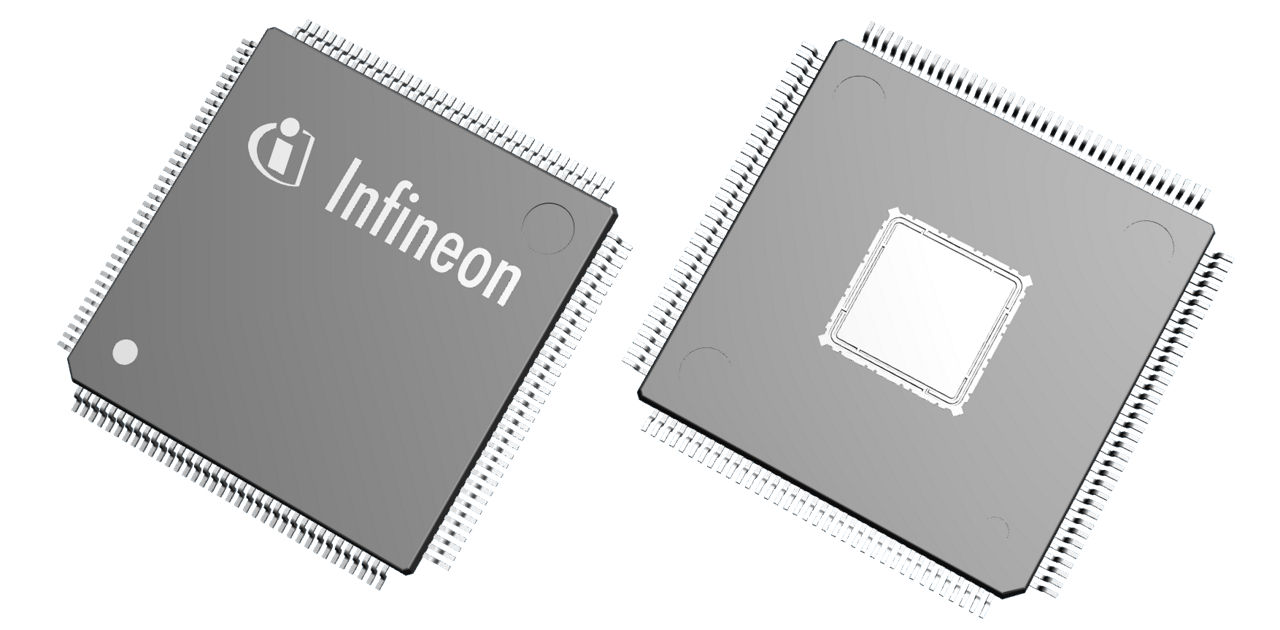

A powerful AURIX™ microcontroller for automotive & industrial applications with a frequency of 133 MHz, up to 1.5MB of Flash and a TQFP-144 package
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SAK-TC234LC-24F133F AC
SAK-TC234LC-24F133F AC

Product details

  • # of cores / lockstep cores
    1/1
  • A/D Input Lines
    24
  • A/D Input Lines (incl. FADC)
    24
  • ASIL/SIL support
    ASIL-D/SIL-3
  • CAN Nodes
    6
  • Classification
    ISO 26262-compliant
  • DMA Channels
    16
  • DSP Functionality
    yes
  • eMMC
    no
  • External Bus Interface
    no
  • Family
    AURIX™ 1G
  • Fast Flash Programming
    no
  • Floating Point Unit
    yes
  • Hardware Accelerator
    no
  • I/O Operation Voltages
    3.3 V
  • Instruction Width ([bits])
    32/16
  • LIN
    2
  • Number of ADC Modules
    2
  • On-chip Clock Generation
    yes
  • On-chip Voltage Regulator
    yes
  • Oscillator Watchdog
    yes
  • Program Memory
    1.5 MByte
  • Real Time Clock
    yes
  • SPI
    4
  • SRAM (incl. Cache)
    128 kByte
  • Temperature
    -40°C - +125°C
  • Touch/LED Matrix Control
    no
  • Type of Memory
    Flash
  • Watchdog Timer
    yes
OPN
TC234LC24F133FACKXUMA1
Product Status on request
Infineon Package
PG-TQFP-144
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package
PG-TQFP-144
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The SAK-TC234LC-24F133F AC is part of the AURIX™ TC23xL family, featuring an innovative multicore architecture with up to three independent 32-bit TriCore CPUs. Engineered to meet the highest safety standards, this product offers up to 133 MHz, a single 3.3V voltage supply, and a Powerful Generic Timer Module (GTM) to reduce complexity, achieve best-in-class power consumption, and deliver significant cost savings.

Features

  • TriCore with 133MHz / DSP functionality
  • 1.5 MB Flash w/ ECC protection
  • 128KB EEProm @ 125k cycles
  • Up to 192KB RAM w/ ECC protection
  • 16x DMA channels
  • 24x 12bit SAR ADC converter
  • Powerful Generic Timer Module (GTM)
  • Sensor interfaces :  4x SENT
  • State of the art connectivity : 1x FlexRay, 2x LIN, 4x QSPI ,  6x CAN including data rate enhanced CAN FD
  • Wake-up Timer
  • Single voltage supply 3.3V
  • TQFP-144 package
  • Temperature  -40°C...+125°C

Benefits

  • Diverse Lockstep Core with clock delay
  • Redundant and diverse timer modules (GTM, CCU6 , GPT12)
  • Access permission system
  • Safety management unit ( SMU )
  • Direct Memory Access ( DMA )
  • I/O, clock, voltage monitor
  • Developed and documented following ISO 26262 to support safety requirements up to ASIL-D
  • AUTOSAR V3.2 and V4.x
