KP276A1201

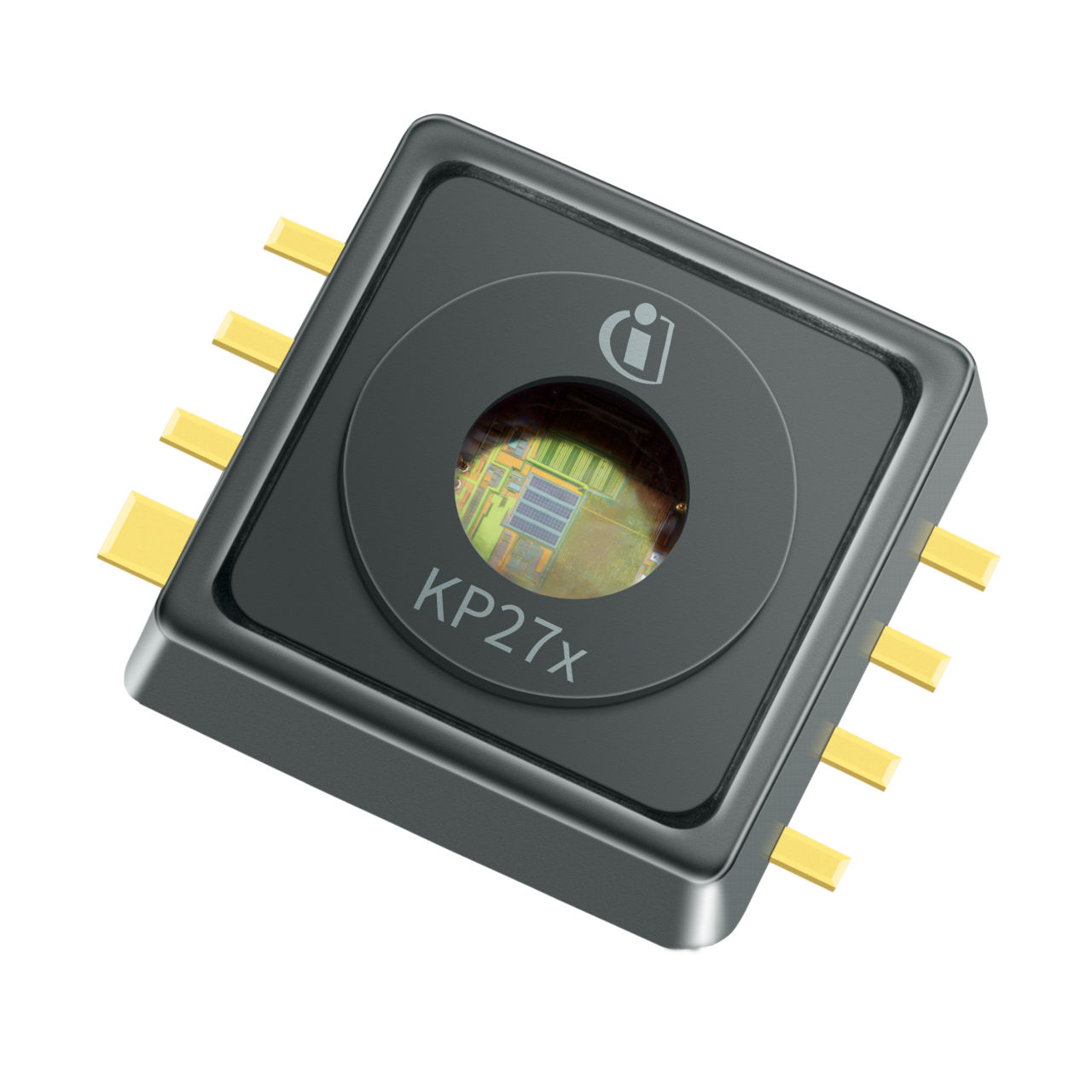

XENSIV™ - KP276A1201 digital Turbo MAP (dTMAP) pressure sensor with SENT output and temperature sensor interface
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KP276A1201
KP276A1201
Data Sheet

Product details

  • Accuracy
    +/-0.77% FSS
  • Interfaces
    SENT
  • Planned to be available until at least
    2036
  • Pressure Range
    10 kPa to 400 kPa
  • Supply Voltage
    5 V
  • Temperature
    -40 °C to 170 °C
Recommended
OPN
KP276A1201XTMA1
Product Status active and preferred
Infineon Package
PG-DSOF-8
Package Name N/A
Packing Size 1500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-DSOF-8
Package Name -
Packing Size 1500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Infineon´s KP276A1201 is a miniaturized digital absolute pressure sensor based on a capacitive principle, interface for an external negative temperature coefficient (NTC) temperature sensor is provided. The temperature information given by the NTC is also digitized into a 12-bit value and transmitted with the SENT protocol. A special safety feature is the integrated diagnostic mode, which allows testing of the sensor cells as well as the signal path, triggered by powering the device.

Features

  • Improved auto media robustness
  • High accuracy pressure sensing±0.77%FSS
  • Signal processing for external sensor
  • SENT protocol interface
  • Real 12-bit pressure resolution
  • Real 12-bit temperature resolution
  • Automotive qualified
