ITS42008-SB-D

High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ITS42008-SB-D
ITS42008-SB-D
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    3.84
  • Channels
    8
  • Current Limit min
    0.7 A
  • Diagnostics
    Digital
  • Family
    Classic PROFET™ Industrial
  • IL (Short Circuit Current)
    1.1 A
  • Load Current
    0.7 A
  • Mounting
    SMT
  • Nominal Load Current per channel (All channels active)
    0.7 A
  • Operating Temperature range
    -40 °C to 125 °C
  • Planned to be available until at least
    2033
  • Ptot max
    3.3 W
  • Qualification
    Industrial
  • Recommended Operating Voltage range
    11 V to 45 V
  • toff (Turn OFF time) max
    150 µs
  • ton (Turn ON time) max
    100 µs
Recommended
OPN
ITS42008SBDAUMA1
Product Status active
Infineon Package
PG-DSO-36
Package Name N/A
Packing Size 800
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-36
Package Name -
Packing Size 800
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • Overload protection
  • Current limitation
  • Short circuit protection
  • Thermal shutdown with restart
  • Overvoltage protection (incl load dump)
  • Shutdown when undervoltage
  • Fast demagnetization of inductive loads
  • Rev battery protection w/ ext resistor
  • Open drain diag O/P overtemp & short CCT
  • CMOS compatible input
  • Electrostatic discharge (ESD) protection

Benefits

  • Clamped Negative O/P for Inductive Loads
  • Flags a fail event (Status pin)
  • Very low standby current
  • ESD-Protection

Applications

Diagrams

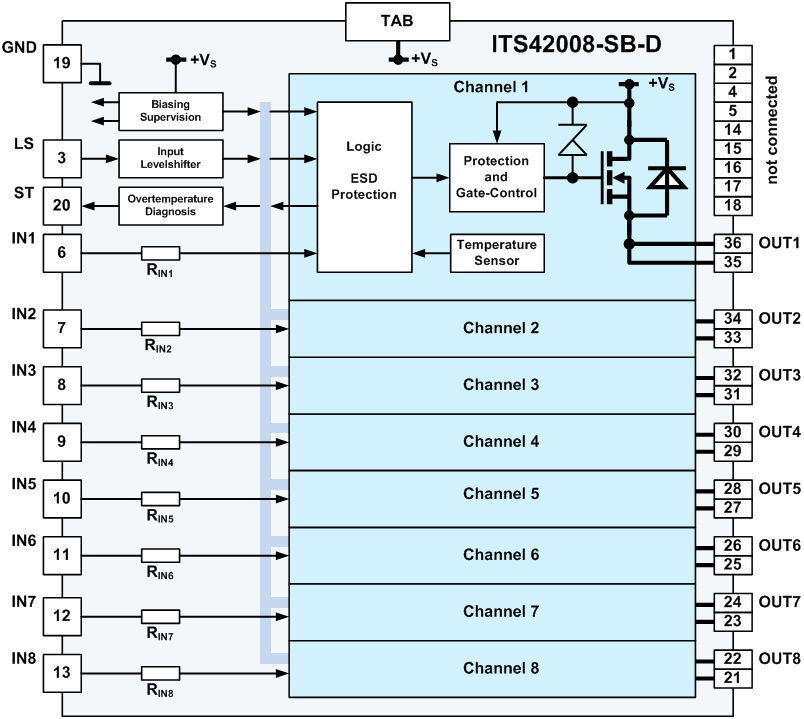

Blockdiagram_ITS42008-SB-D
