IRSM836-035MB

END OF LIFE

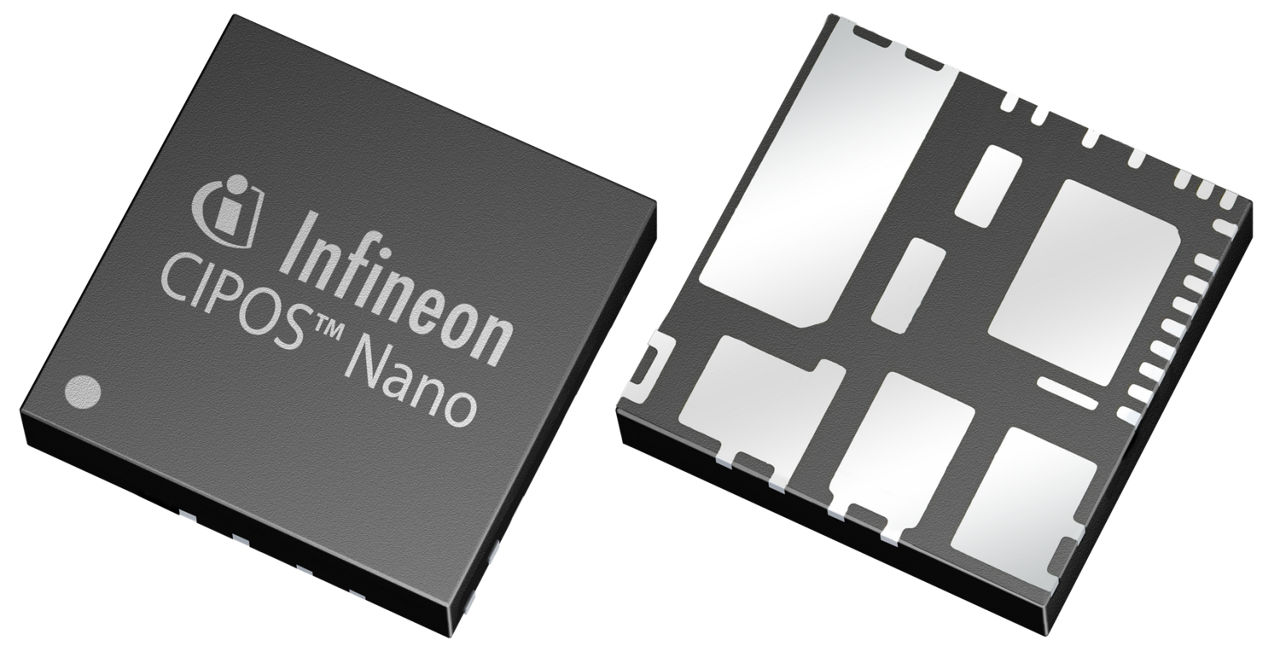

CIPOS™ Nano 500 V, 2.2 Ω three-phase intelligent power module
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRSM836-035MB
IRSM836-035MB
Data Sheet

Product details

  • Additional Information
    Electrical
  • Built in NTC
    No
  • Configuration
    3 Phase Common Source
  • Encryption
    No
  • Language
    PLECS
  • Pmot (10kHz)
    70 W
  • Product Category
    Intelligent Power Modules (IPM)
  • Product Group
    CIPOS™ Nano
  • Product Name
    IRSM836-035MB
  • Qualification
    Industrial
  • Rated Current
    3 A
  • RDS (on) (@ Tj = 25°C) max
    2.2 Ω
  • Switch Type
    MOSFET
  • Voltage Class
    500 V
OPN
IRSM836-035MB IRSM836-035MBTR
Product Status discontinued discontinued
Infineon Package
QFN 12X12 27L
QFN 12X12 27L
Package Name QFN 12x12 QFN 12x12
Packing Size 800 2000
Packing Type TRAY TAPE & REEL
Moisture Level N/A 3
Moisture Packing DRY DRY
Lead-free Yes Yes
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
QFN 12X12 27L
Package Name QFN 12x12
Packing Size 800
Packing Type TRAY
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status discontinued
Infineon Package
QFN 12X12 27L
Package Name QFN 12x12
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
CIPOS™ Nano 500 V, 2.2 Ω three-phase MOSFET based intelligent power module with common source in QFN 12x12 package providing fully-featured compact inverter solution with excellent thermal conduction for motor drive applications including wide range of home appliances, low power industrial drives, and etc.

Features

  • Low RDS(on) Trench FREDFETs based
  • Integrated bootstrap functionality
  • Undervoltage lockout
  • Matched prop. delay for both chan.
  • Cross-conduction prevention logic
  • 3.3 V input logic compatible
  • Active high HIN and LIN
  • M. power rating up to 70 W@10 kHz

Diagrams

Internal_IRSM836-035MB
Internal_IRSM836-035MB
Internal_IRSM836-035MB Internal_IRSM836-035MB Internal_IRSM836-035MB
×
