IRSM807-045MH

CIPOS™ Nano 500 V, 1.7 Ω half-bridge intelligent power module
Data Sheet
package
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRSM807-045MH
IRSM807-045MH
ea.
Data Sheet

Product details

  • Additional Information
    Electrical
  • Built in NTC
    No
  • Configuration
    Half-Bridge
  • Encryption
    No
  • Language
    PLECS
  • Pmot (10kHz)
    130 W
  • Product Category
    Intelligent Power Modules (IPM)
  • Product Group
    CIPOS™ Nano
  • Product Name
    IRSM807-045MH
  • Qualification
    Industrial
  • Rated Current
    4 A
  • RDS (on) (@ Tj = 25°C) max
    1.7 Ω
  • Switch Type
    MOSFET
  • Voltage Class
    500 V
Recommended
OPN
IRSM807-045MH IRSM807-045MHTR
Product Status active and preferred active and preferred
Infineon Package
QFN 9X8 31L
QFN 9X8 31L
Package Name QFN 8x9 QFN 8x9
Packing Size 1300 2000
Packing Type TRAY TAPE & REEL
Moisture Level 3 3
Moisture Packing DRY DRY
Lead-free Yes Yes
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
QFN 9X8 31L
Package Name QFN 8x9
Packing Size 1300
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status
Active
Infineon Package
QFN 9X8 31L
Package Name QFN 8x9
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
CIPOS™ Nano 500 V, 1.7 Ω half-bridge MOSFET based intelligent power module in QFN 8x9 package providing ultra compact, half-bridge topology solution through a rugged IC in the small QFN package for small home appliances, low power drives which are space-constrained.

Features

  • Low RDS(on) Trench FREDFETs based
  • Integrated bootstrap functionality
  • Undervoltage lockout
  • Matched prop. delay for both chan.
  • 3.3 V input logic compatible
  • Active high HIN and LIN
  • M. power rating up to 130 W@10 kHz

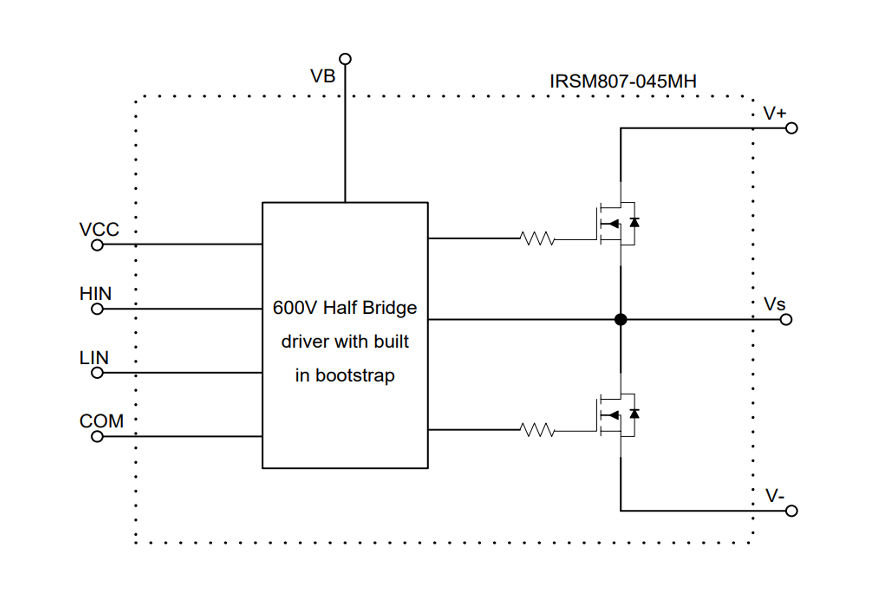

Diagrams

Internal_IRSM807-045MH
Internal_IRSM807-045MH
Internal_IRSM807-045MH Internal_IRSM807-045MH Internal_IRSM807-045MH
×
