IRSM005-800MH

END OF LIFE
CIPOS™ Nano 40 V, 0.005 Ω half-bridge intelligent power module
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRSM005-800MH
IRSM005-800MH
Data Sheet

Product details

  • Additional Information
    Electrical
  • Built in NTC
    No
  • Configuration
    Half-Bridge
  • Encryption
    no
  • Language
    PLECS
  • Pmot (10kHz)
    165 W
  • Product Category
    Intelligent Power Modules (IPM)
  • Product Group
    CIPOS™ Nano
  • Product Name
    IRSM005-800MH
  • Qualification
    Industrial
  • Rated Current
    80 A
  • RDS (on) (@ Tj = 25°C) max
    0.005 Ω
  • Switch Type
    MOSFET
  • Voltage Class
    40 V
OPN
IRSM005-800MHTR IRSM005-800MH
Product Status discontinued discontinued
Infineon Package
QFN 7X8 27L
QFN 7X8 27L
Package Name QFN 7x8 QFN 7x8
Packing Size 2000 1300
Packing Type TAPE & REEL TRAY
Moisture Level 3 3
Moisture Packing DRY DRY
Lead-free Yes Yes
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
QFN 7X8 27L
Package Name QFN 7x8
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status discontinued
Infineon Package
QFN 7X8 27L
Package Name QFN 7x8
Packing Size 1300
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
CIPOS™ Nano 40 V, 0.005 Ω half-bridge MOSFET based intelligent power module in QFN 7x8 package providing ultra compact, half-bridge topology solution through a rugged IC in the small QFN package for small home appliances, low power drives which are space-constrained.

Features

  • Low RDS(on) Trench FREDFETs based
  • Undervoltage lockout
  • Prop. delay matched to defined spec
  • 3.3, 5 & 15 V logic input compatib.
  • Indep. drive in phase w. logic inp.
  • Gate drive supply: 10 V to 20 V
  • M. power rating up to 165 W@10 kHz

Diagrams

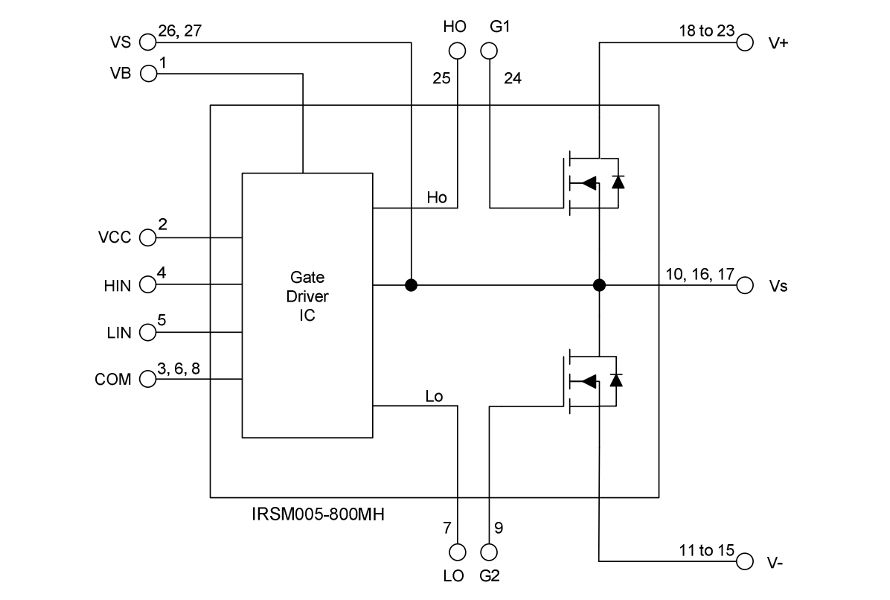

Internal_IRSM005-800MH
Internal_IRSM005-800MH
Internal_IRSM005-800MH Internal_IRSM005-800MH Internal_IRSM005-800MH
×
