IRSM005-301MH

CIPOS™ Nano 100 V, 0.02 Ω half-bridge intelligent power module
Data Sheet
package
board
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRSM005-301MH
IRSM005-301MH
ea.
Data Sheet

Product details

  • Additional Information
    Electrical
  • Applications
    Motor Control & Drives
  • Built in NTC
    No
  • Configuration
    Half-Bridge
  • Encryption
    no
  • Language
    PLECS
  • Pmot (10kHz)
    165 W
  • Product Category
    Intelligent Power Modules (IPM)
  • Product Group
    CIPOS™ Nano
  • Product Name
    IRSM005-301MH
  • Qualification
    Industrial
  • Rated Current
    30 A
  • RDS (on) (@ Tj = 25°C) max
    0.02 Ω
  • Switch Type
    MOSFET
  • Voltage Class
    100 V
Recommended
OPN
IRSM005-301MHTR IRSM005-301MH
Product Status active and preferred active and preferred
Infineon Package
QFN 7X8 27L
QFN 7X8 27L
Package Name QFN 7x8 QFN 7x8
Packing Size 2000 1300
Packing Type TAPE & REEL TRAY
Moisture Level 3 3
Moisture Packing DRY DRY
Lead-free Yes Yes
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock ea. in stock

Product Status
Active
Infineon Package
QFN 7X8 27L
Package Name QFN 7x8
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status
Active
Infineon Package
QFN 7X8 27L
Package Name QFN 7x8
Packing Size 1300
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
CIPOS™ Nano 100 V, 0.02 Ω half-bridge MOSFET based intelligent power module providing ultra compact, half-bridge topology solution through a rugged IC in a small QFN package for small home appliances, low power drives which are space-constrained.

Features

  • Low RDS(on) Trench FREDFETs based
  • Undervoltage lockout
  • Prop. delay matched to defined spec
  • 3.3, 5 & 15 V logic input compatib.
  • Indep. drive in phase w. logic inp.
  • Gate drive supply: 10 V to 20 V
  • M. power rating up to 165 W@10 kHz

Applications

Diagrams

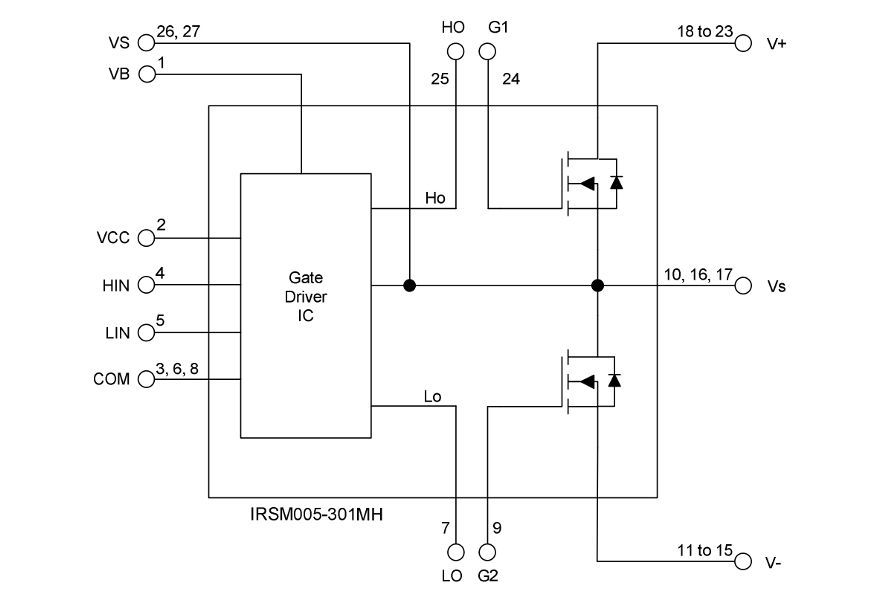

Internal_IRSM005-301MH
Internal_IRSM005-301MH
Internal_IRSM005-301MH Internal_IRSM005-301MH Internal_IRSM005-301MH
×
