Active
RoHS Compliant
Lead-free

IRS2505L

The IRS2505L is a control IC for boost-type PFC circuits operating in critical-conduction mode.
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS2505L
IRS2505L
Data Sheet

Product details

  • Applications
    Electronic Ballast, SMPS
  • ICC max
    25 mA
  • IQ
    60 µA
  • Moisture Sensitivity Level
    1
  • Output Current Type
    MOSFET Gate Driver
  • Package
    5 Lead SOT-23
  • VCC
    9 V to 20.8 V
Recommended
OPN
IRS2505LTRPBF
Product Status active
Infineon Package SOT23
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package SOT23
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
IRS2505L is a micro-PFC controller IC in 5-pin SOT-23 package for low power PFC boost front end up to 150 W. Critical conduction mode operation including smart ZX sensing through MOSFET gate drive pin. IRS2505L meets EN61000-3-2 class C limits for lighting applications.

Benefits

  • Critical-conduction mode PFC control
  • High PF and ultra-low THD
  • Wide load and line range
  • Regulated and programmable DC bus voltage
  • No secondary winding required
  • MOSFET cycle-by-cycle over-current protection
  • DC bus over-voltage protection
  • Low EMI gate drive
  • Ultra-low start-up current
  • 20.8V internal zener clamp on VCC
  • Excellent ESD and latch immunity
  • RoHS compliant
  • 5-pin SOT-23 package

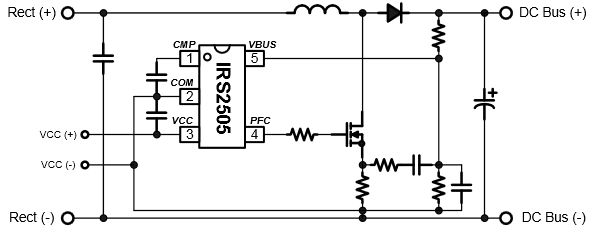

Diagrams

tc-irs2505l
tc-irs2505l
tc-irs2505l tc-irs2505l tc-irs2505l
×
