IRS2452BM
Active and preferred
RoHS Compliant
Lead-free

IRS2452BM

IRS2452BM is a Class D Audio IC with High Power 2-Channel, PWM + OC and UVLO Protection that can used in combination with Si, GaN or SiC audio designs
Datasheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS2452BM
IRS2452BM
Datasheet

Product details

Recommended
OPN
IRS2452BMXUMA1
Product Status active and preferred

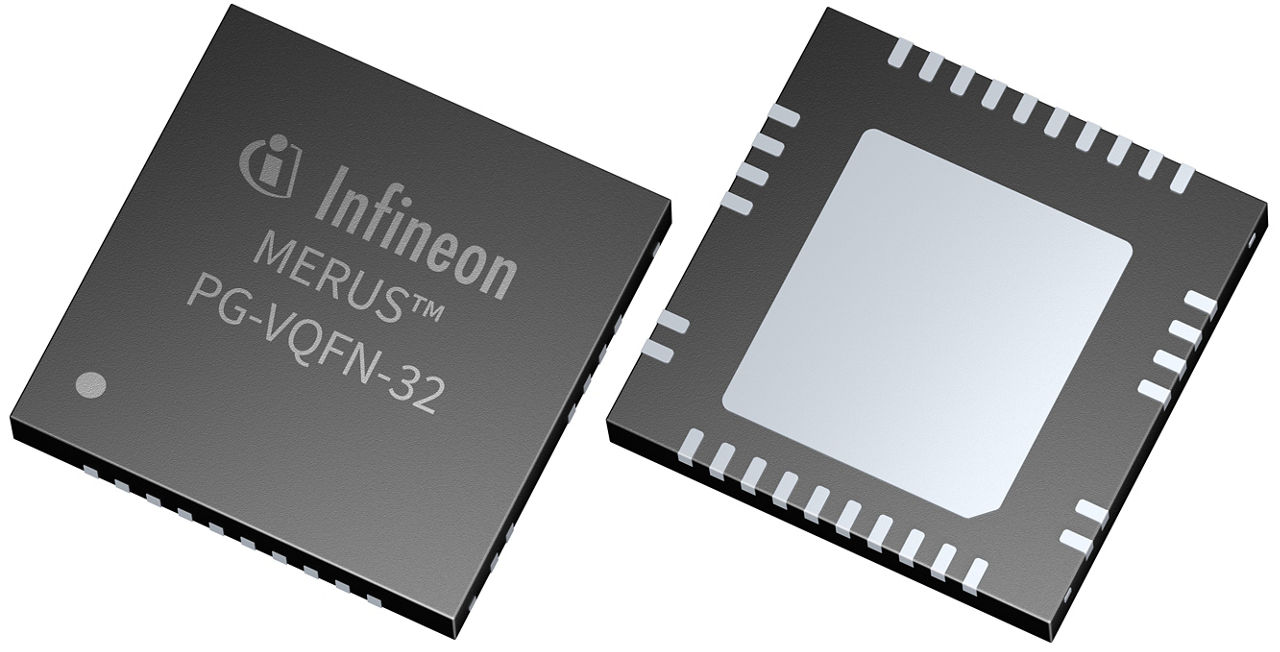

Infineon Package
PG-VQFN-32
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VQFN-32
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The IRS2452BM integrates two channels of high voltage, high performance Class D audio amplifier drivers with PWM modulators and protections.

Features

  • Dual channel analog input
  • 400 V high voltage gate driver stage
  • Differential or single-ended input
  • Versatile protection controls
  • Versatile protection controls
  • Programmable dead-time generation
  • External thermal sensor input
  • Click noise reduction
  • Under voltage protection
  • High noise immunity
