IRS2304S

600 V half-bridge gate driver IC with shoot through protection
Data Sheet
package
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS2304S
IRS2304S
ea.
Data Sheet

Product details

  • Channels
    2
  • Configuration
    Half Bridge
  • Input Vcc
    10 V to 20 V
  • Isolation Type
    Functional levelshift JI (Junction Isolated)
  • Output Current (Source)
    0.29 A
  • Output Current (Sink)
    0.6 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    150 ns
  • Turn On Propagation Delay
    150 ns
  • VBS UVLO (On)
    8.9 V
  • VBS UVLO (Off)
    8.2 V
  • VCC UVLO (On)
    8.9 V
  • VCC UVLO (Off)
    8.2 V
  • Voltage Class
    600 V
Recommended
OPN
IRS2304STRPBF IRS2304SPBF
Product Status active and preferred discontinued
Infineon Package
SOIC 8N
SOIC 8N
Package Name N/A N/A
Packing Size 2500 3800
Packing Type TAPE & REEL TUBE
Moisture Level 2 2
Moisture Packing DRY DRY
Lead-free Yes Yes
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
SOIC 8N
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status discontinued
Infineon Package
SOIC 8N
Package Name -
Packing Size 3800
Packing Type TUBE
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
EiceDRIVER™ 600 V half-bridge gate driver IC with typical 0.29 A source and 0.6 A sink currents in 8 Lead SOIC package with level-shift technology for IGBTs and MOSFETs . Also available in 8 Lead PDIP .

Features

  • Floating channel for bootstrap op.
  • Tolerant to neg. transient volt.
  • dV/dt immune
  • Gate drive supply: 10 V to 20 V
  • Undervolt. lockout for both channel
  • Cross-conduction prevention logic
  • 3.3, 5 & 15 V input logic compatib.
  • Matched prop. delay for both chan.
  • Outputs in phase with inputs
  • Lower di/dt gate driver
  • Internal 100 ns deadtime

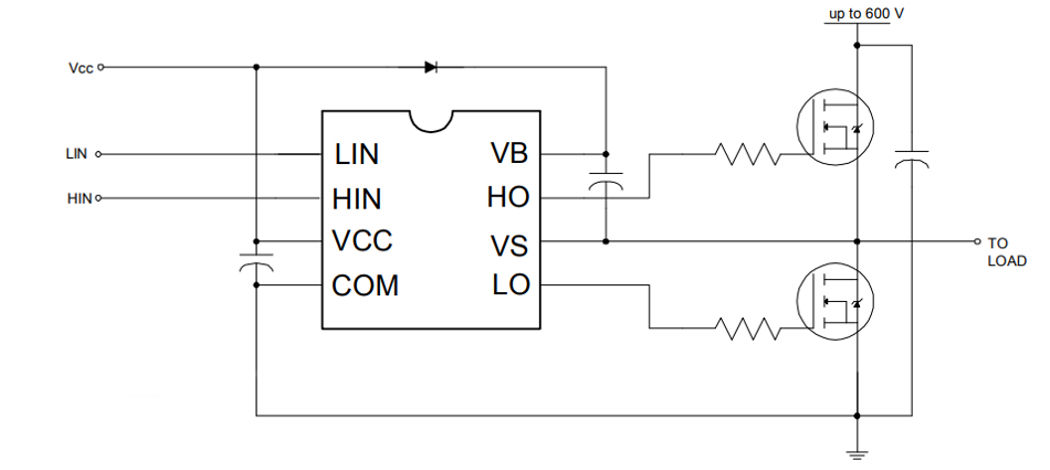

Diagrams

IRS230xx
IRS230xx
IRS230xx IRS230xx IRS230xx
×
