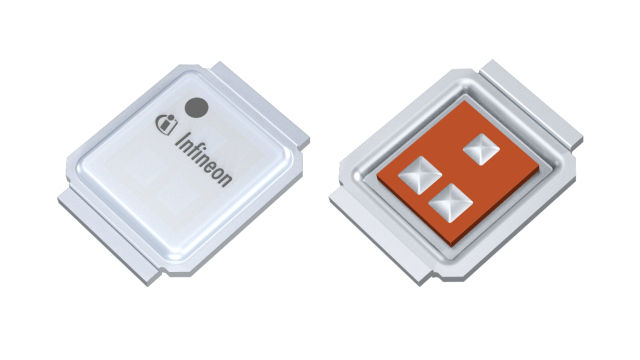

IRF6645

100V Single N-Channel StrongIRFET™ Power MOSFET in a DirectFET™ SJ package
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRF6645
IRF6645
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.47
  • ID (@25°C) max
    25 A
  • Micro-stencil
    IRF66SJ-25
  • Moisture Sensitivity Level
    1
  • Mounting
    SMD
  • Operating Temperature
    -40 °C to 150 °C
  • Package
    DirectFET (S)
  • Polarity
    N
  • Ptot (@ TA=25°C) max
    3 W
  • Ptot max
    42 W
  • Qgd
    4.8 nC
  • QG (typ @10V)
    14 nC
  • RDS (on) (@10V) max
    35 mΩ
  • RthJC max
    3 K/W
  • Tj max
    150 °C
  • VDS max
    100 V
  • VGS(th)
    3.95 V
  • VGS max
    20 V
Recommended
OPN
IRF6645TRPBF
Product Status active and preferred
Infineon Package
MG-WDSON-5
Package Name DirectFET (S)
Packing Size 4800
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
MG-WDSON-5
Package Name DirectFET (S)
Packing Size 4800
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

Features

  • Optimized for broadest availability
  • Product qualification according to JEDEC
  • High-current rating
  • Dual-side cooling capability
  • Low package height of 0.7mm
  • Low parasitic (1-2 nH) pkg inductance
  • 100% lead-free (No RoHS exemption)

Benefits

  • Wide distribution availability
  • Industry standard qualification level
  • High power density
  • Optimum thermal performance
  • Compact form factor
  • High efficiency
  • Environmentally friendly
