Active and preferred
RoHS Compliant

IR3888MTRPBF

OptiMOS™ IPOL 25 A single - voltage synchronous buck regulator
Data Sheet

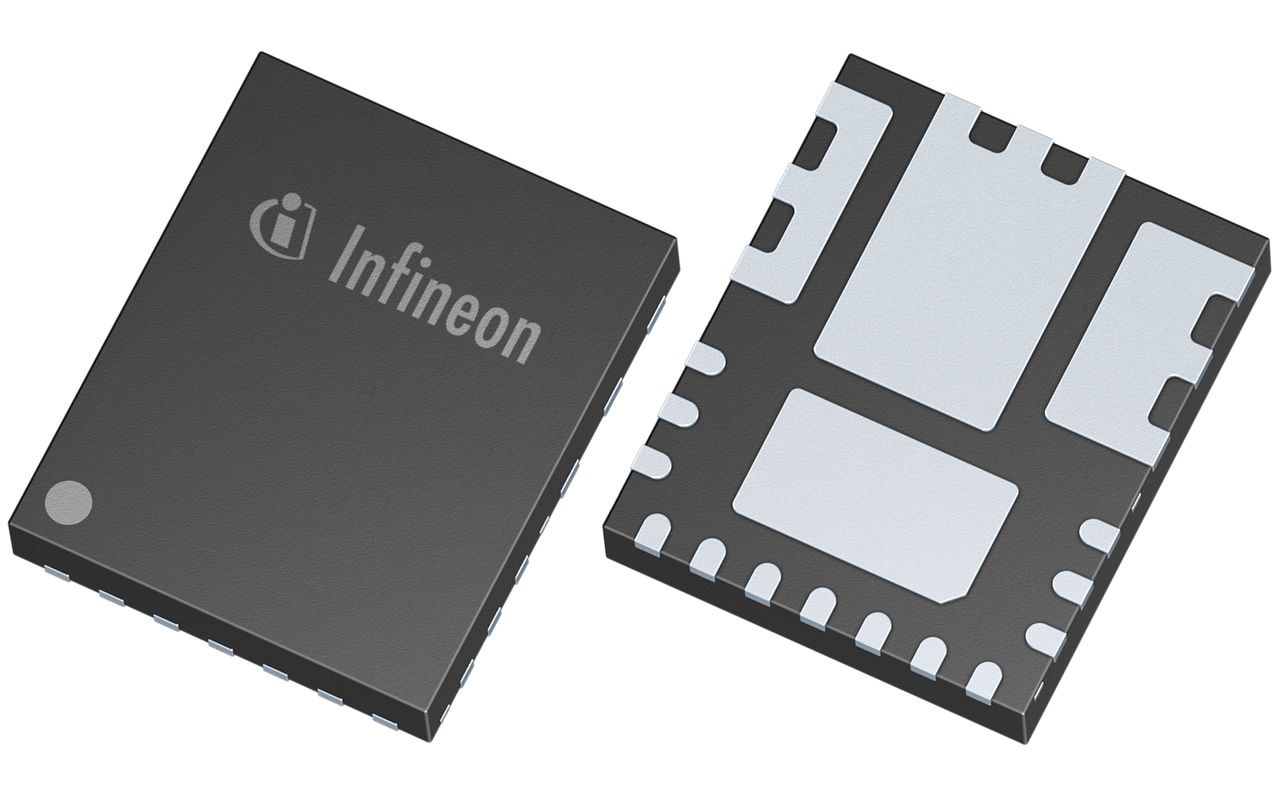

package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IR3888MTRPBF
IR3888MTRPBF
Data Sheet

Product details

  • Family
    OptiMOS™ IPOL
  • Input Voltage
    2 V to 17 V
  • Iout max
    25 A
  • Moisture Sensitivity Level
    2
  • Number of Outputs
    1
  • Output Voltage
    0.6 V to 6 V
  • Package
    PG-IQFN-22-2
  • Product Category
    Analog
  • Qualification
    Industrial
  • Switching Frequency
    600 kHz to 2000 kHz
  • Technology
    Fast Constant On-Time
  • Type
    Single-phase
Recommended
OPN
IR3888MTRPBFAUMA1
Product Status active and preferred
Infineon Package
PG-IQFN-22
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-IQFN-22
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The IR3888 OptiMOS™ IPOL is an easy-to-use, fully integrated DC-DC buck regulator. The onboard PWM controller and OptiMOS™ MOSFETs with integrated bootstrap diode make the IR3888 a small footprint solution, providing high-efficient power delivery. Furthermore, it uses a fast Constant-On-Time (COT) control scheme, which simplifies the design efforts and achieves fast control response.

Features

  • 4.3-17V application
  • Precision Reference (0.6V +/
  • 0.5%)
  • Enhanced Fast COT engine
  • Forced Conduction & Diode Emulation mode
  • Switching Frequency from 0.6-2MHz
  • 4 Selectable Soft-Start Times
  • OCP with 4 Selectable Settings
  • Enable input with Voltage Monitoring
  • Thermal Shut Down
  • Operating Temp: -40 °C to 125 °C
  • Small Size: 6 mm x 5 mm PQFN

Diagrams

IR3888-Basic-Apps-circuit
IR3888-Basic-Apps-circuit
IR3888-Basic-Apps-circuit IR3888-Basic-Apps-circuit IR3888-Basic-Apps-circuit
IR3888-Performance-curve IR3888-Performance-curve IR3888-Performance-curve
IR3888-Functional-block-diagram IR3888-Functional-block-diagram IR3888-Functional-block-diagram
×
