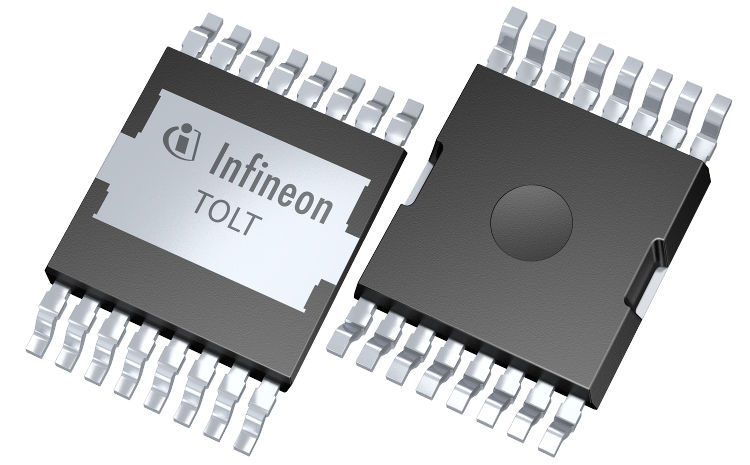

IPTC017N10NM5LF2

OptiMOS™ 5 single N-channel Linear FET 2 100 V, 1.7 mΩ, 351 A in TOLT package
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPTC017N10NM5LF2
IPTC017N10NM5LF2
ea.
Data Sheet

Product details

  • ID (@25°C) max
    321 A
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    TOLT (HDSOP-16)
  • Polarity
    N
  • QG (typ @10V)
    165 nC
  • RDS (on) (@10V) max
    1.7 mΩ
  • Special Features
    Wide SOA
  • VDS max
    100 V
  • VGS(th)
    3.1 V
Recommended
OPN
IPTC017N10NM5LF2ATMA1
Product Status active and preferred
Infineon Package
PG-HDSOP-16
Package Name TOLT
Packing Size 1800
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-HDSOP-16
Package Name TOLT
Packing Size 1800
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
IPTC017N10NM5LF2 is Infineon’s best-in-class OptiMOS™ 5 Linear FET 2 100 V in the TO-Leaded top-side package. Offering the industry’s lowest RDS(on) and wide SOA at 25˚C.  With the combination of OptiMOS™ 5 Linear FET 2 technology and TOLT package, the IPTC017N10NM5LF2 is designed to provide highest power density, for inrush current protection applications such as hot-swap, e-fuse, and within battery protection in Battery management systems (BMS).

Features

  • Wide safe operating area (SOA)
  • Low RDS(on)
  • Lower IGSS compared to Linear FET
  • Optimized transfer characteristic

Benefits

  • Rugged linear mode operation
  • Low condition losses
  • Improved gate driver compatibility
  • Better current sharing
