Active
RoHS Compliant

IPG20N06S2L-35

55 V, Dual N-Ch, 35 mΩ max, Automotive MOSFET, SSO8 (5x6), OptiMOS™
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPG20N06S2L-35
IPG20N06S2L-35
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.43
  • ID (@25°C) max
    20 A
  • IDpuls max
    80 A
  • Launch year
    2009
  • Operating Temperature
    -55 °C to 175 °C

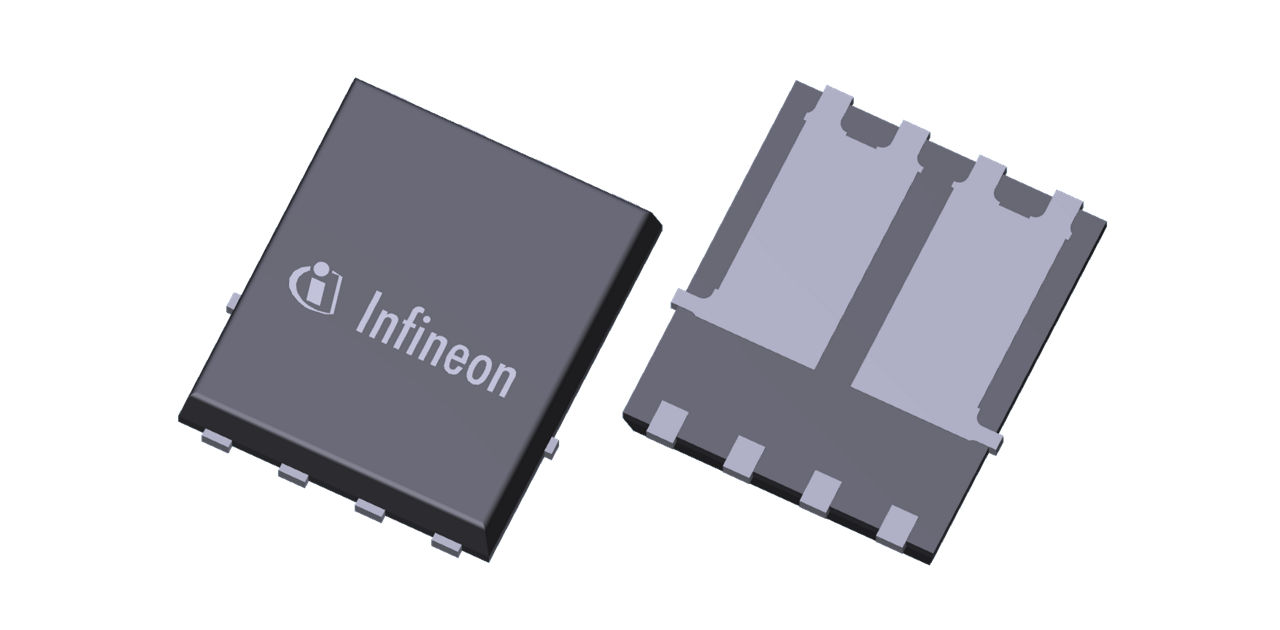

  • Package
    dual SS08 (PG-TDSON-8)
  • Currently planned availability until at least
    2033
  • Polarity
    N+N
  • Ptot max
    65 W
  • QG (typ @10V) max
    23 nC
  • QG (typ @10V)
    18 nC
  • Qualification
    Automotive
  • RDS (on) (@10V) max
    35 mΩ
  • RthJC max
    2.3 K/W
  • Technology
    OptiMOS™
  • VDS max
    55 V
  • VGS(th)
    1.6 V
Recommended
OPN
IPG20N06S2L35ATMA1
Product Status active
Infineon Package
PG-TDSON-8
Package Name Dual SSO8
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TDSON-8
Package Name Dual SSO8
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • Dual N-Channel - Enhancement mode
  • Logic Level
  • 150 °C operating temperature
  • Avalanche rated
  • dv/dt rated
  • Green product (RoHS compliant)
  • AEC Qualified
  • PPAP Capable Device

Benefits

  • Dual SSO8 for PCB Space and Cost Savings
  • Bond wire is 200um for up to 20A current
  • Larger source lead for wire bonding
  • Equal performance to DPAK, same die size
  • Exposed pad for thermal transfer
  • 2 N-Channel MOSFETs; Isolated Leadframes
