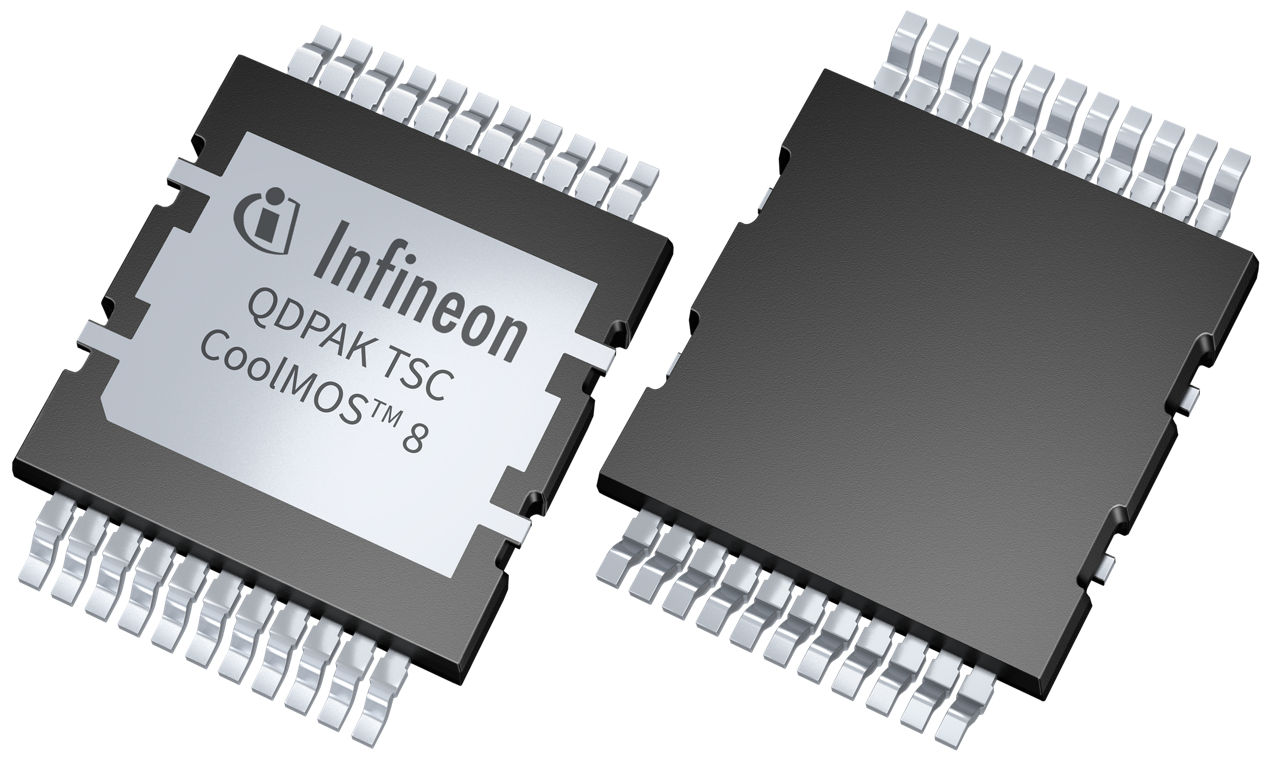

IPDQ65R008CM8

650 V CoolMOS™ 8 power transistor
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPDQ65R008CM8
IPDQ65R008CM8
Data Sheet

Product details

  • ID (@25°C) max
    270 A
  • IDpuls max
    1100 A
  • Mounting
    SMT
  • Operating Temperature
    -55 °C to 150 °C
  • Package
    Q-DPAK
  • Polarity
    N
  • QG (typ @10V)
    375 nC
  • QG
    375 nC
  • RDS (on) (@ Tj = 25°C)
    6.66664 mΩ
  • Special Features
    Best price-performance with highest efficiency and fast recovery diode
  • VDS max
    650 V
Recommended
OPN
IPDQ65R008CM8XTMA1
Product Status active and preferred
Infineon Package
PG-HDSOP-22
Package Name Q-DPAK
Packing Size 750
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-HDSOP-22
Package Name Q-DPAK
Packing Size 750
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The 650 V CoolMOS™ 8 SJ MOSFETs series is the successor to the 650 V CoolMOS™ 7 MOSFET family including C7 and CFD7. It comes with better efficiency compare to its predeccesor. 650 V CoolMOS™ 8 offers the additional 50 V buffer to fulfill the requirement of higher power applications. Beside these advantages, it also includes fast body diode across whole portfolio.

Features

  • Best-in-class RDS(on)*A
  • Integrated fast body diode
  • .XT interconnection
  • Top side cooling Q-DPAK package
  • 12000 cycle TCoB
  • Minimized cost of maintenance

Benefits

  • Increased power density
  • Ease of use and fast design-in
  • Simplified portfolio
  • Reduced assembly cost
  • Space reduction
  • SMT compatible

Applications
