Active and preferred
RoHS Compliant

IPD70R600P7S

Infineon’s answer for flyback topologies
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPD70R600P7S
IPD70R600P7S
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.24
  • ID max
    8.5 A
  • ID (@25°C) max
    8.5 A
  • IDpuls max
    20.5 A
  • Mounting
    SMT
  • Operating Temperature
    -40 °C to 150 °C
  • Package
    DPAK
  • Pin Count
    3 Pins
  • Polarity
    N
  • Ptot max
    43.1 W
  • Qgd
    3.7 nC
  • QG (typ @10V)
    10.5 nC
  • QG
    10.5 nC
  • RDS (on) max
    600 mΩ
  • RDS (on) (@10V) max
    600 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    2.9 K/W
  • Rth
    2.9 K/W
  • Special Features
    price/performance
  • VDS max
    700 V
  • VGS(th)
    3 V
Recommended
OPN
IPD70R600P7SAUMA1
Product Status active and preferred

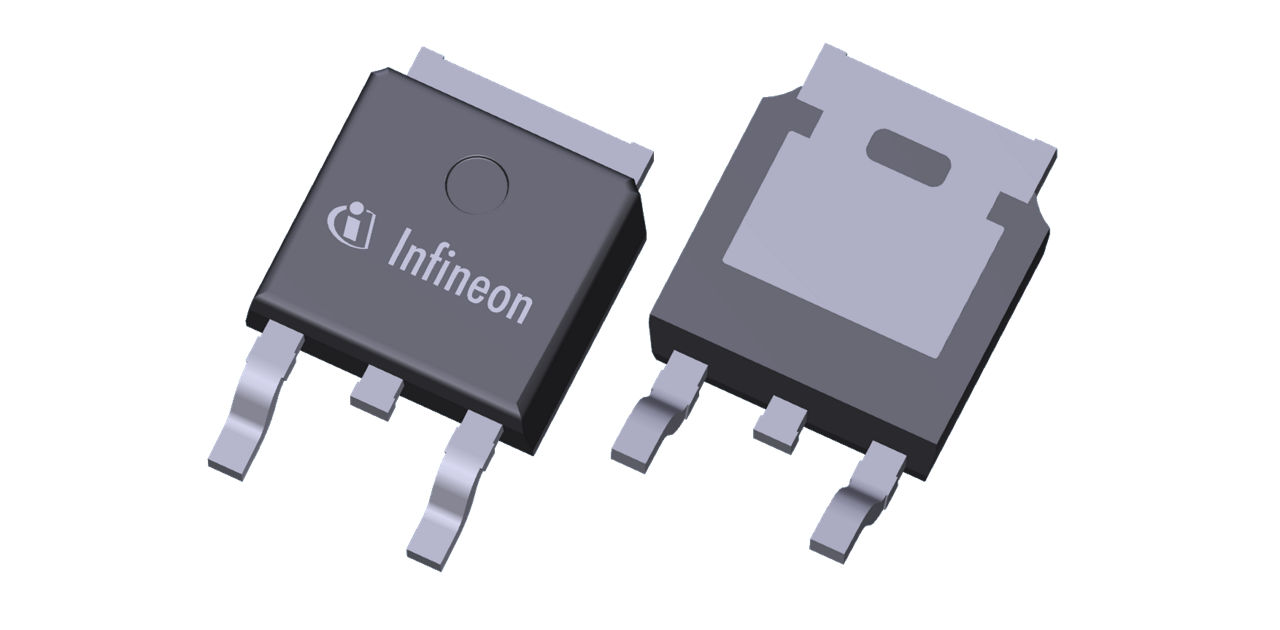

Infineon Package
PG-TO252-3
Package Name DPAK
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO252-3
Package Name DPAK
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Developed to serve today’s and especially tomorrow’s trends in flyback topologies – the new 700V CoolMOS™ P7 superjunction MOSFET series addresses the low power SMPS market, such as mobile phone chargers or notebook adapters by offering fundamental performance gains compared to superjunction technologies used today. By combining customers’ feedback with over 20 years of superjunction MOSFET experience, 700V CoolMOS™ P7 enables best fit for target applications in terms of:
  • Efficiency and thermals
  • Ease-of-use
  • EMI behavior

Features

  • CoolMOS™ 7 series
  • low gate charge
  • low stored energy in COSS
  • integrated gate resistor
  • Fieldproven CoolMOS™ quality
  • CoolMOS™ since 1998

Benefits

  • better control
  • high efficiency @ hard switching
  • higher power density
  • MOSFET suits hard & resonant topologies
