IMY120R018CM2H

NEW

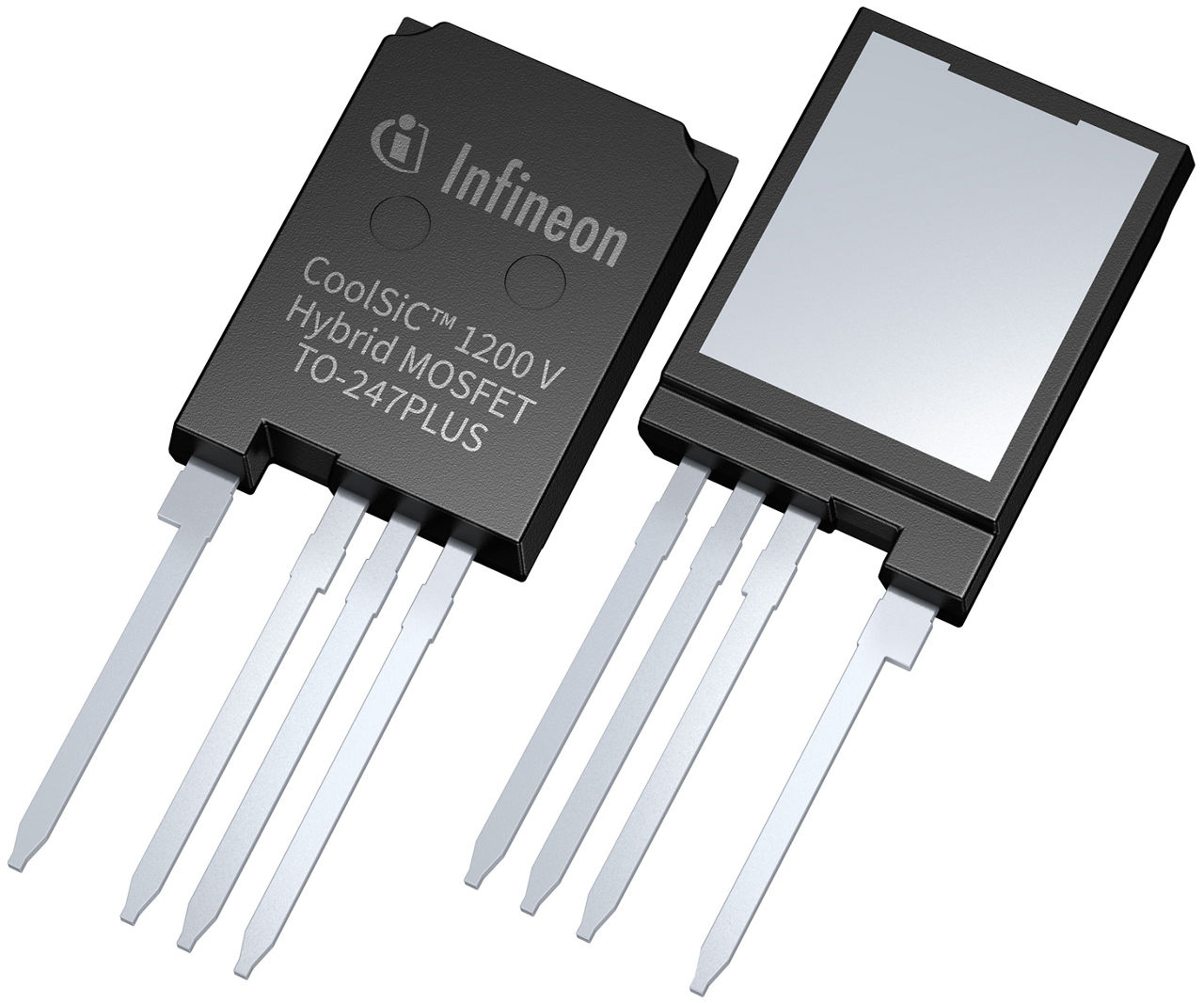

CoolSiC™ MOSFET hybrid discrete 1200 V in TO-247PLUS-4 package
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IMY120R018CM2H
IMY120R018CM2H
Data Sheet

Product details

  • Ciss
    2885 pF
  • Coss
    134 pF
  • ID (@25°C) max
    80 A
  • Mounting
    THT
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    PG-TO247-4-U10
  • Pin Count
    4 Pins
  • Polarity
    N
  • Ptot (@ TA=25°C) max
    280 W
  • Qgd
    16.8 nC
  • QG
    73 nC
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    18 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    0.53 K/W
  • Technology
    CoolSiC™ G2
  • Tj max
    175 °C
  • VDS max
    1200 V
Recommended
OPN
IMY120R018CM2HXKSA1
Product Status active and preferred
Infineon Package
PG-TO247-4
Package Name N/A
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TO247-4
Package Name -
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The CoolSiC™ MOSFET hybrid discrete 1200 V, 18 mΩ G2, housed in a TO-247-4-pin package, combines the advanced capabilities of Generation 2 MOSFET technology with a Soft-Switching 1200 V, 81 A Emitter-Controlled 7 Silicon Diode. Designed specifically for solar MPPT stages, this innovative solution delivers enhanced performance for compact, reliable, and cost-optimized systems.

Features

  • RDS = 18 mΩ at VGS = 18 V, Tvj = 25°C
  • Reverse-polarity protection diode
  • Diode IF = 81 A at Tc = 100°C
  • Very low switching losses
  • Benchmark gate threshold voltage, VGS(th) = 4.2 V
  • Robust against parasitic turn on
  • Soft and low Qrr diode with VF = 1.6 V at Tc = 175°C

Benefits

  • Optimized performance
  • Highly reliable
  • Higher power density
  • Better energy efficiency
  • Ease of use

Applications

Photovoltaic
