IGQ120N120S7

1200 V, 120 A IGBT7 S7 in TO247PLUS-3pin package
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IGQ120N120S7
IGQ120N120S7
ea.
Data Sheet

Product details

  • Eoff
    9.5 mJ
  • Eon
    12.6 mJ
  • IC (@ 100°) max
    144 A
  • IC (@ 25°) max
    216 A
  • ICpuls max
    360 A
  • Package
    TO-247-3-PLUS
  • Ptot max
    1004 W
  • QGate
    710 nC
  • Qrr
    13700 nC
  • Switching Frequency
    2 kHz to 20 kHz
  • td(off)
    256 ns
  • td(on)
    42 ns
  • Technology
    TRENCHSTOP™ IGBT7
  • tf
    200 ns
  • tr
    35 ns
  • tSC
    8 µs
  • VCE(sat)
    2 V
  • VCE max
    1200 V
  • VGE(th)
    5.7 V
Recommended
OPN
IGQ120N120S7XKSA1
Product Status active and preferred
Infineon Package
PG-TO247-3
Package Name N/A
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO247-3
Package Name -
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Hard-switching 1200 V, 120 A single TRENCHSTOP™ IGBT7 S7 discrete in TO-247 package which offers low VCEsat to achieve very low conduction losses in target applications.

Features

  • Very Low VCEsat
  • Good controllability
  • Full rated free wheeling diode
  • Diode with improved softness
  • Robustness against harsh condition
  • Robustness against HV-H3TRB
  • 8 us short circuit time
  • Very tight parameter distribution
  • Maximum operating Tj of 175 °C

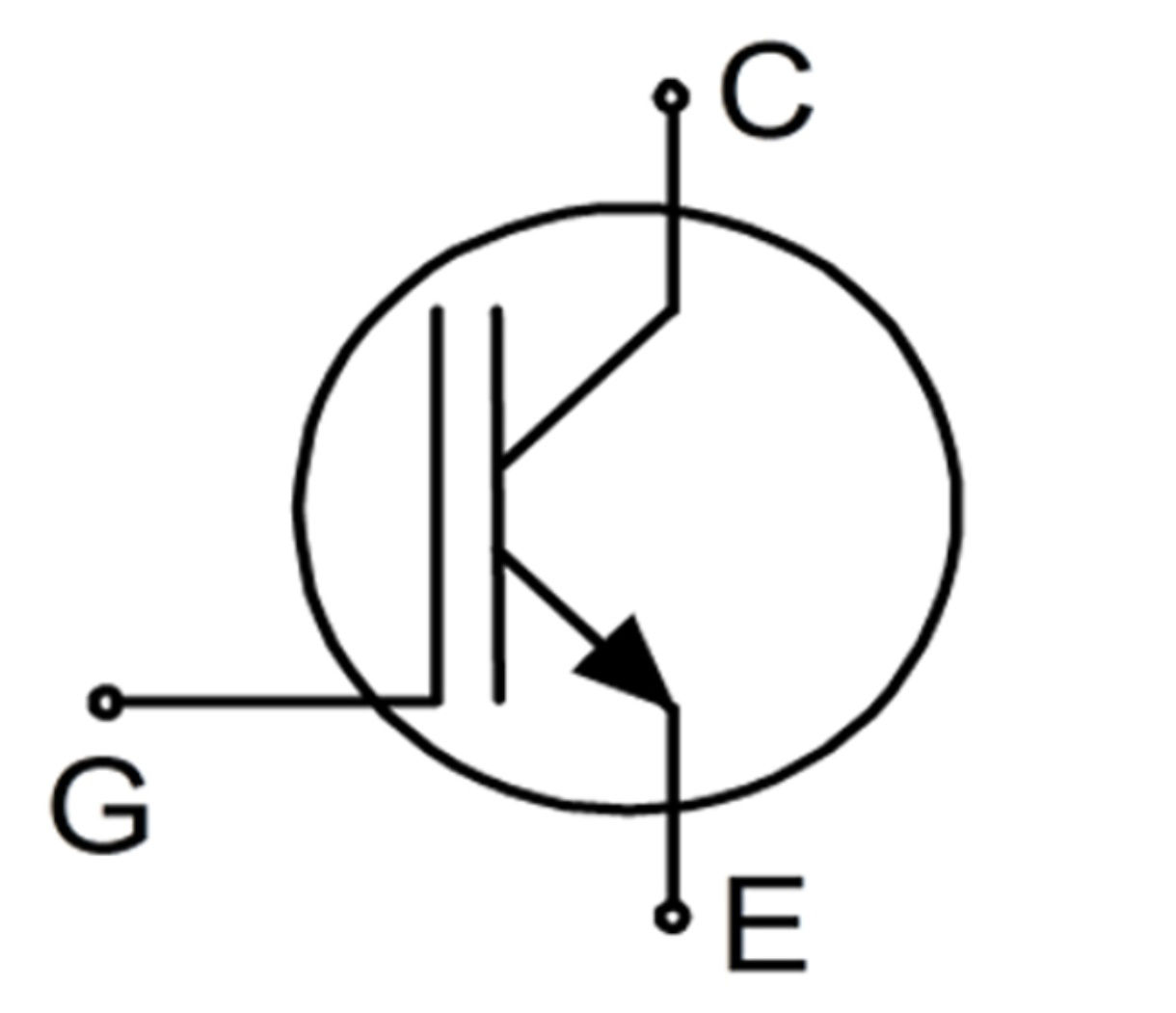

Diagrams

Diagram_IGQ
Diagram_IGQ
Diagram_IGQ Diagram_IGQ Diagram_IGQ
×
