Active and preferred
RoHS Compliant
Lead-free

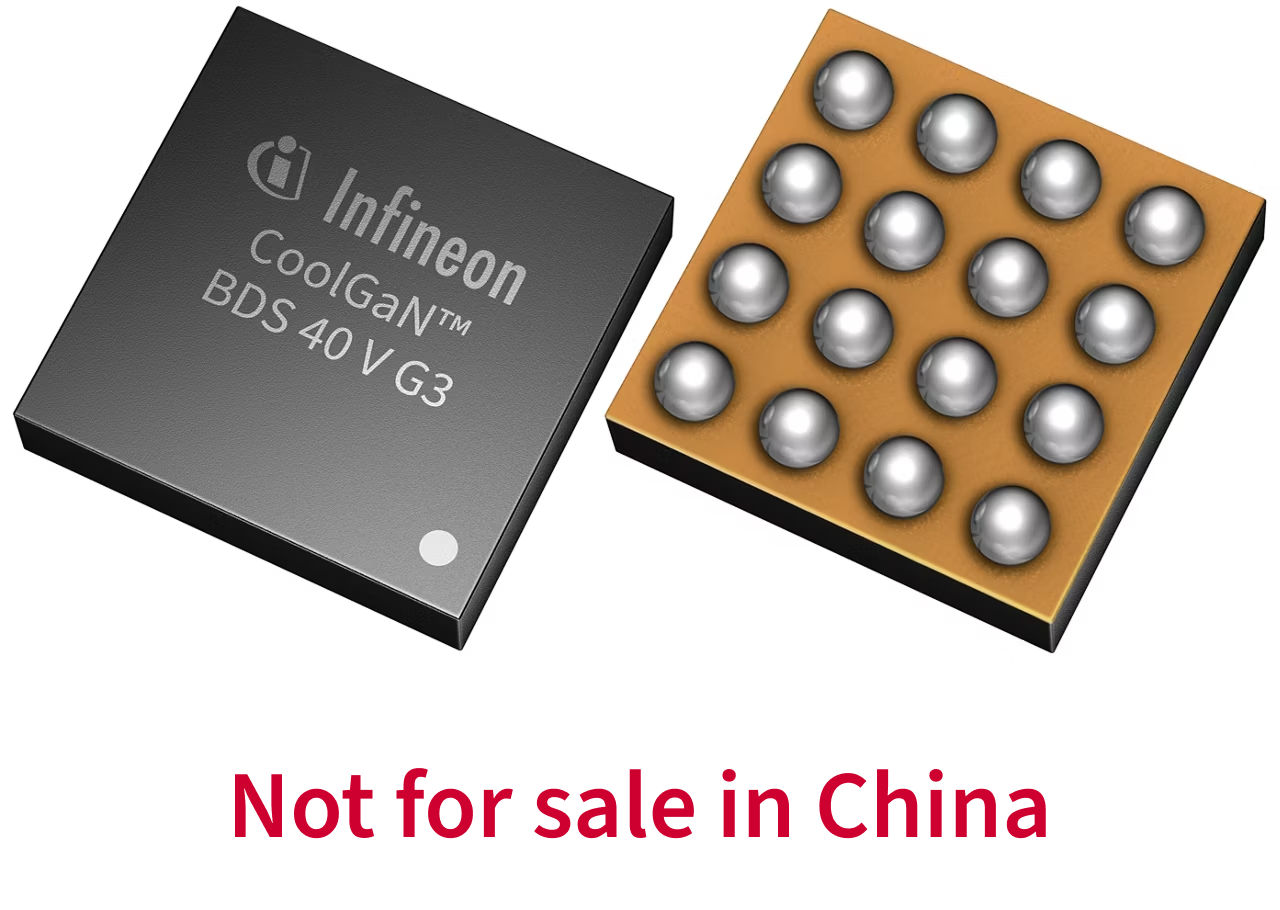

IGK080B041S

CoolGaN™ Bidirectional Switch 40 V G3 in WLCSP, 6 mΩ
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IGK080B041S
IGK080B041S
Data Sheet

Product details

  • Family
    CoolGaN™ BDS 40 V G3
  • Green
    RoHS compliant, Halogen free
  • ID (@25°C) max
    35 A
  • Planned to be available until at least
    2035
  • QG
    5.3 nC
  • RDD (on) max
    8 mΩ
  • VDD max
    40 V
Recommended
OPN
IGK080B041SXTSA1
Product Status active and preferred
Infineon Package
SG-UFWLB-16
Package Name N/A
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
SG-UFWLB-16
Package Name -
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The IGK080B041S is a 40 V normally-off bidirectional power transistor housed in a small WLCSP 1.7x1.7 package, enabling high power density designs. Thanks to its very low on-state resistance, it is the ideal choice for reliable performance in demanding applications requiring bidirectional blocking capability such as load switch.

Features

  • 40 V bidirectional e-mode transistor
  • Drain-to-drain configuration
  • Bidirectional blocking capability
  • Low gate charge, low output charge
  • Qualified according to JEDEC

Benefits

  • Enabling smaller designs
  • Reducing power losses
  • Lower cost
