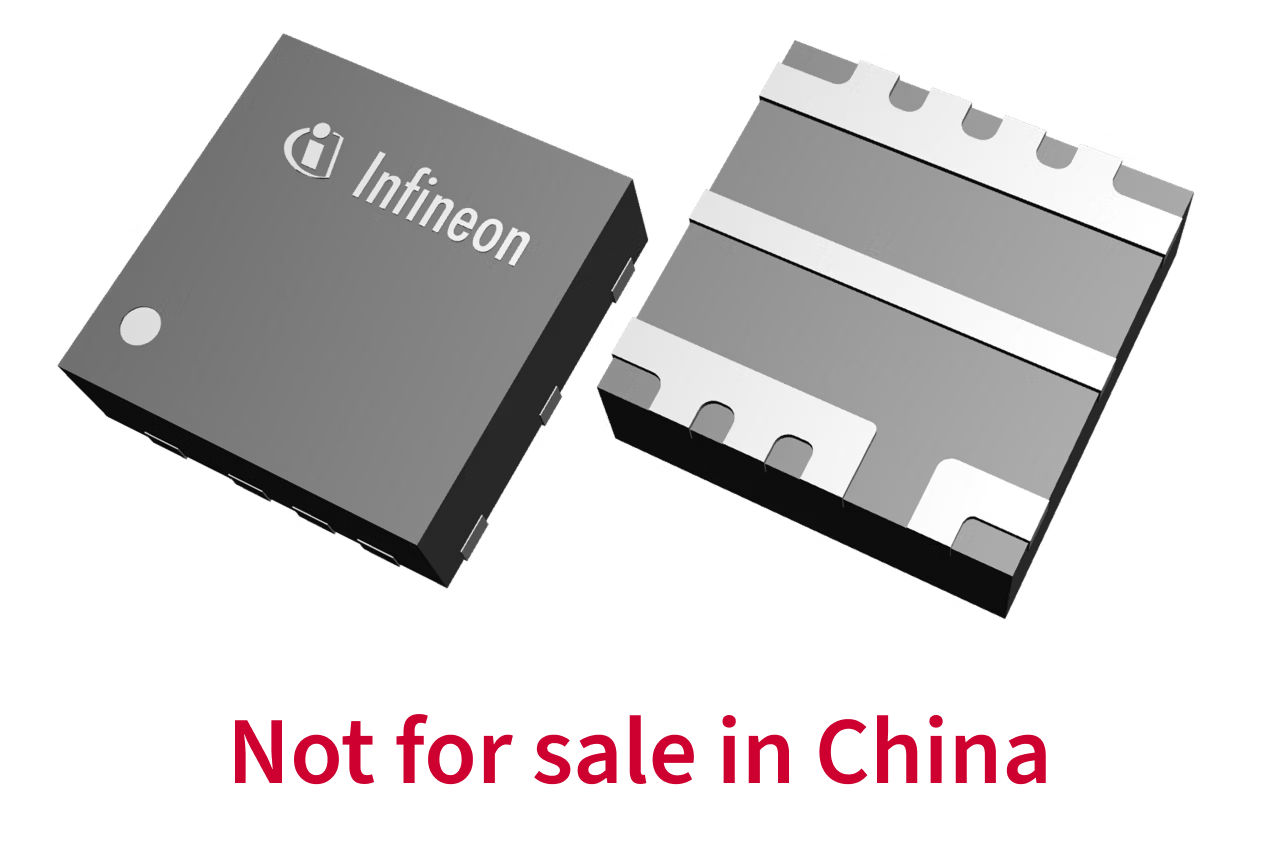

IGB110S101

CoolGaN™ Transistor 100 V G3 in PQFN 3x3, 9.4 mΩ
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IGB110S101
IGB110S101
ea.
Data Sheet

Product details

  • Family
    CoolGaN™ Transistor 100 V G3
  • Green
    RoHS compliant, Halogen free
  • ID (@25°C) max
    23 A
  • IDpuls (@25°C) max
    97 A
  • Package
    PQFN
  • Planned to be available until at least
    2035
  • QG
    3.4 nC
  • Qualification
    Industrial
  • RDS (on) (typ)
    9.4 mΩ
  • VDS max
    100 V
Recommended
OPN
IGB110S101XTMA1
Product Status active and preferred
Infineon Package
PG-VSON-4
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-VSON-4
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The IGB110S101 is a 100 V normally-off e-mode power transistor housed in a small PQFN 3x3 package, enabling high power density designs. Thanks to its low on-state resistance, it is the ideal choice for reliable performance in demanding high-voltage and high-current applications.

Features

  • 100 V e-mode power transistor
  • Bottom-side cooled package
  • No reverse recovery charge
  • Reverse conduction capability
  • Low gate charge, low output charge
  • Qualified according to JEDEC

Benefits

  • Best-in-class power density
  • Highest efficiency
  • Improved thermal management
  • Enabling smaller and lighter designs
  • Excellent reliability
  • Lowering BOM cost
