Active and preferred
RoHS Compliant

IGB10N60T

600 V, 15 A IGBT Discrete in TO263 package
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IGB10N60T
IGB10N60T
ea.
Data Sheet

Product details

  • Eoff (Hard Switching)
    0.27 mJ
  • Eon
    0.16 mJ
  • IC (@ 100°) max
    18 A
  • IC (@ 25°) max
    24 A
  • ICpuls max
    30 A
  • Package
    D2PAK (TO-263-3)
  • Ptot max
    110 W
  • QGate
    62 nC
  • RGint
    0 Ω
  • RG
    23 Ω
  • Soft Switching
    No
  • Switching Frequency
    2 kHz to 20 kHz
  • td(off)
    233 ns
  • td(on)
    10 ns
  • Technology
    IGBT TRENCHSTOP™
  • tf
    63 ns
  • tr
    11 ns
  • tSC
    5 µs
  • VCE(sat)
    1.5 V
  • VCE max
    600 V
Recommended
OPN
IGB10N60TATMA1
Product Status active and preferred
Infineon Package
PG-TO263-3
Package Name D2PAK
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO263-3
Package Name D2PAK
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Hard-switching 600 V, 10 A single TRENCHSTOP™ IGBT3 Discrete in TO263 D2Pak package, leads to significant improvement of static as well as dynamic performance of the device, due to combination of trench-cell and fieldstop concept. The combination of IGBT with soft recovery emitter controlled diode further minimizes the turn-on losses. The highest efficiency is reached due to the best compromise between switching and conduction losses.

Features

  • Lowest VCEsatdrop
  • Low switching losses
  • Positive temp. coeffi. in VCEsat
  • Easy parallel switching capability
  • Very soft anti-parallel Diode
  • High ruggedness
  • Temperature stable behavior
  • Low EMI emissions
  • Low gate charge
  • Very tight parameter distribution

Benefits

  • Highest efficiency
  • Comprehensive portfolio
  • High device reliability
  • low conduction and switching losses

Applications

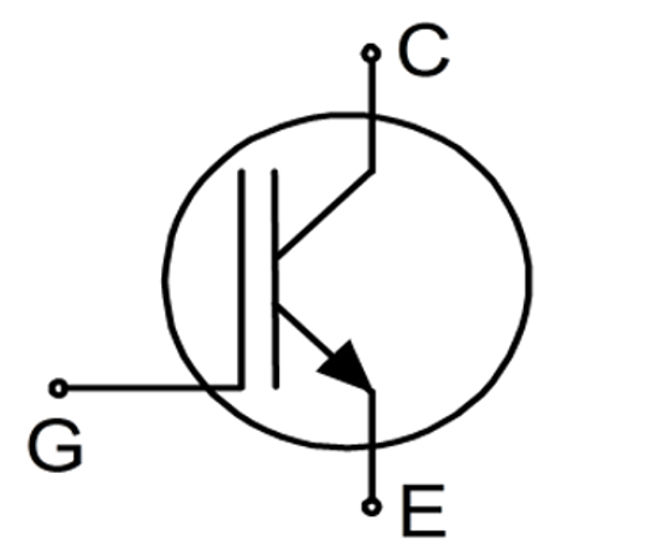

Diagrams

without_diode
without_diode
without_diode without_diode without_diode
×
