IFX9201SG

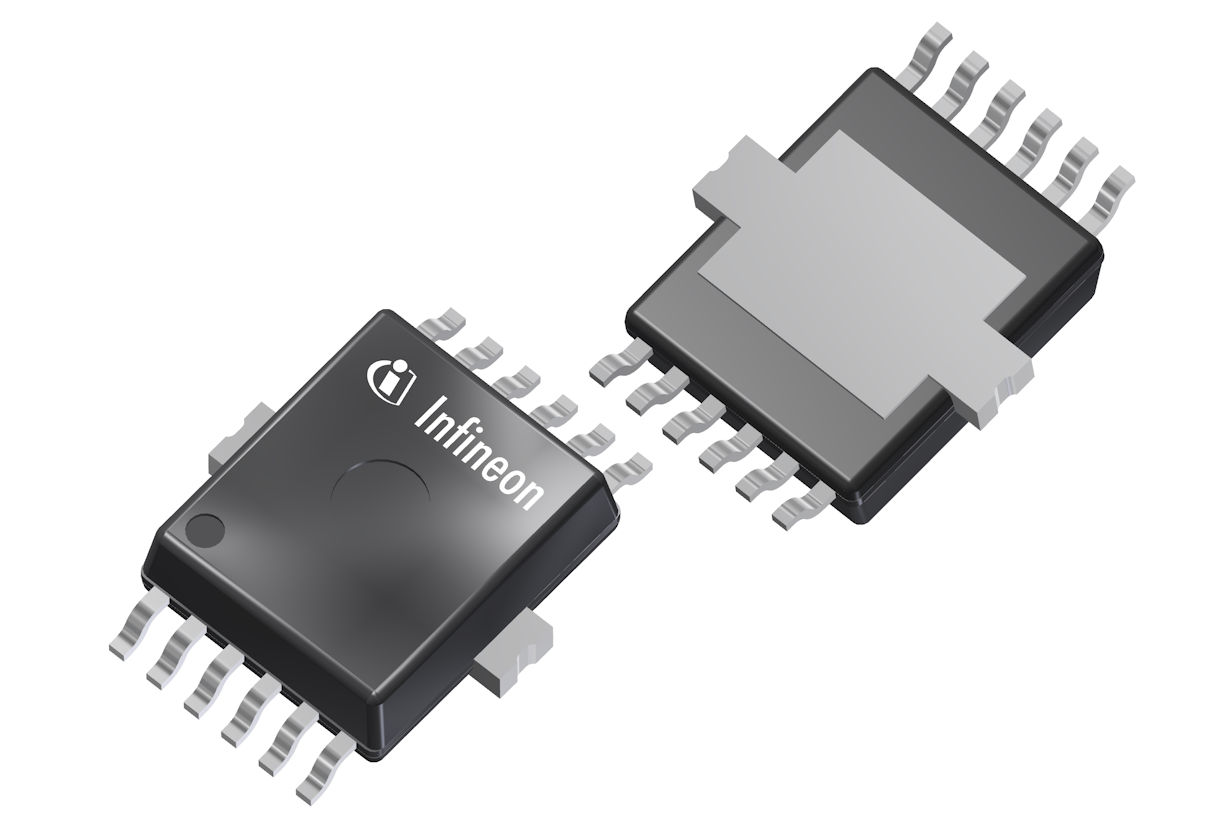

The MOTIX™ IFX9201SG a general purpose 6A H-bridge designed for the control of small DC motors and inductive load
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IFX9201SG
IFX9201SG
ea.
Data Sheet

Product details

  • Diagnostics
    SPI & Status Flag
  • ID(lim)(multiple)
    6.0 A
  • Inhibit
    Yes
  • Iq
    13 mA, 19 µA
  • Language
    PLECS
  • Mounting
    SMT
  • Normal Operating Voltage Range
    5 V - 36 V
  • Operating Voltage
    5 V to 36 V
  • Over current detection min
    6 A
  • Currently planned availability until at least
    2037
  • Product Category
    Motor Control ICs
  • Protect
    OC, OT, SC
  • RDS (on) (switch)
    100 mΩ
  • RDS (on)
    100 mΩ
  • RDSON_H(typ)
    100 mΩ
  • RDSON_L(typ)
    100 mΩ
  • Technology
    MOTIX™ Bridge
  • Temperature
    -40 °C to 125 °C
Recommended
OPN
IFX9201SGAUMA1
Product Status active
Infineon Package
PG-DSO-12
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-12
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Infineon's MOTIX™ IFX9201SG is a 6A H-bridge for industrial, home appliance, and medical applications. It controls small DC motors and inductive loads with PWM modulation up to 20kHz. It offers protection against short circuits, over temperature, and provides diagnostics via SPI or status flag. The package has excellent thermal performance for automated solder inspection.

Features

  • RDSon (typ.) < 100 mΩ per switch
  • Operation voltage 4.5 V to 36 V
  • Logic inputs: 3.3 V and 5 V
  • Low standby current
  • Short circuit & over-temp protect.
  • VS under-voltage protection
  • Open load detection in ON & OFF state
  • SPI diagnosis or error flag
  • Green product (RoHS compliant)

Benefits

  • Small package saves board space
  • Simple design, few external components
