IDW75E60

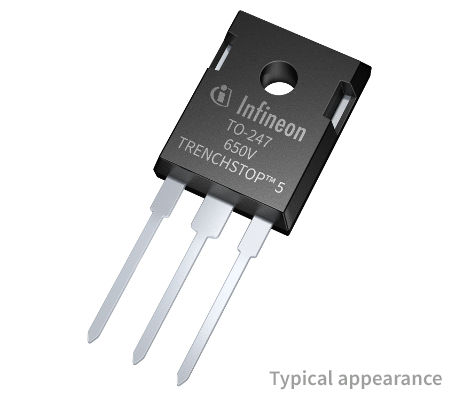

600 V IGBT silicon power diode in TO-247 package
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IDW75E60
IDW75E60
Data Sheet

Product details

  • Configuration
    Single
  • I(FSM) max
    220 A
  • IF
    75 A
  • IR max
    40 µA
  • Irrm
    38.5 A
  • Mounting
    THT
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    TO-247
  • Ptot max
    300 W
  • Qrr
    0.24 µC
  • RthJC max
    0.5 K/W
  • trr
    121 ns
  • VF
    1.65 V
  • Voltage Class max
    600 V
Recommended
OPN
IDW75E60FKSA1
Product Status active
Infineon Package
PG-TO247-3
Package Name TO247
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TO247-3
Package Name TO247
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The 600 V, 75 A emitter controlled silicon power diode in a TO-247 package has been primarily designed for motor drive applications up to 30kHz.

Features

  • Lowest VF values
  • Very soft diodes
  • Tj (max)of 175°C
  • Qualified according to JEDEC
  • Cooler packages & higher efficiency
  • Excellent EMI behavior
  • Excellent cost/perform. trade-off
  • Low conduction losses
  • Easy paralleling
