IDV20E65D1

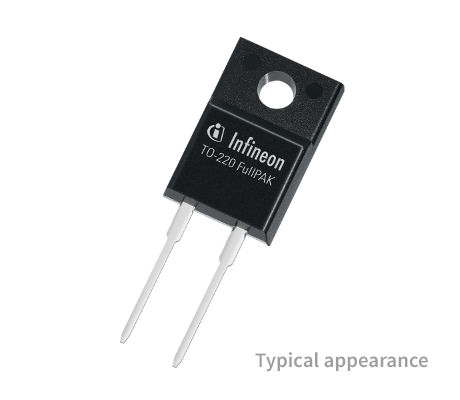

650 V silicon power diode in TO-220 FullPAK package
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IDV20E65D1
IDV20E65D1
Data Sheet

Product details

  • Configuration
    Single
  • I(FSM) max
    120 A
  • IF
    15 A
  • IR max
    40 µA
  • Irrm
    7.6 A
  • Mounting
    THT
  • Operating Temperature
    -40 °C to 175 °C
  • Package
    TO-220
  • Ptot max
    38 W
  • Qrr
    0.31 µC
  • RthJC max
    4 K/W
  • trr
    65 ns
  • VF
    1.35 V
  • Voltage Class max
    650 V
Recommended
OPN
IDV20E65D1XKSA1
Product Status active and preferred
Infineon Package PG-TO220-2
Package Name N/A
Packing Size 500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package PG-TO220-2
Package Name -
Packing Size 500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Rapid 1 switching 650 V, 20 A emitter controlled power silicon diodes in a TO-220 FullPAK package is perfectly suited for Power Factor Correction (PFC) topologies, typically found in major home appliances such as air caonditioners and washing machines.

Features

  • 1.35 V temperature-stable VF
  • Highest softness-factor for:
  • Ultimate softness
  • Low EMI filtering
  • Lowest Irrm for:
  • Low turn-on losses on boost switch
  • For 18 kHz to 40 kHz applications
