IDH20G120C5

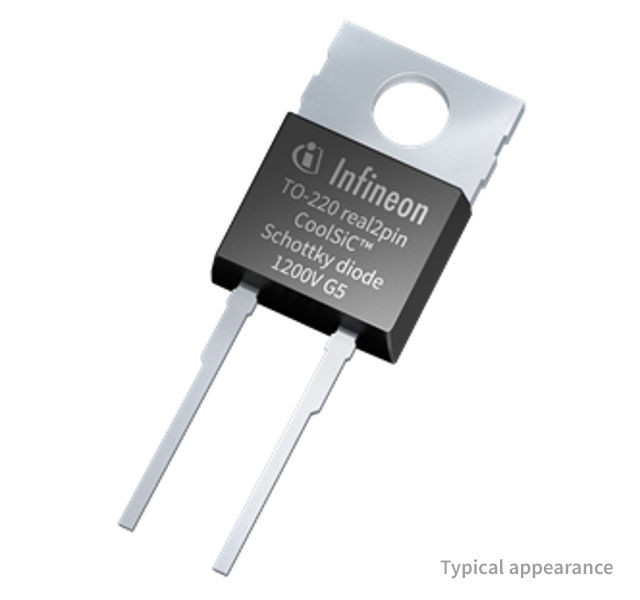

CoolSiC™ Schottky diode 1200 V in TO-220 real2pin package
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IDH20G120C5
IDH20G120C5
Data Sheet

Product details

  • I(FSM) max
    198 A
  • IF max
    20 A
  • IR
    8.5 µA
  • Package
    PG-TO220-2
  • Ptot max
    330 W
  • QC
    82 nC
  • Qualification
    Industrial
  • RthJC
    0.35 K/W
  • VF
    1.5 V
Recommended
OPN
IDH20G120C5XKSA1
Product Status active and preferred
Infineon Package
PG-TO220-2
Package Name TO220
Packing Size 500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TO220-2
Package Name TO220
Packing Size 500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
CoolSiC™ Schottky diode 1200 V, 20 A generation 5 in a TO-220 real2pin package, presents a leading edge technology for SiC Schottky Barrier diodes. The thin wafer technology, already introduced with G2, is now combined with a new merged pn junction improving diode surge current capabilities. The result is a series of products delivering market leading efficiency and more system reliability at an attractive cost point.

Features

  • Best-in-class forward voltage (VF)
  • No reverse recovery charge
  • Mild positive temp. depend. of VF
  • Best-in-class surge current capab.
  • Excellent thermal performance
