Active and preferred
RoHS Compliant

IAUMN10S5N016G

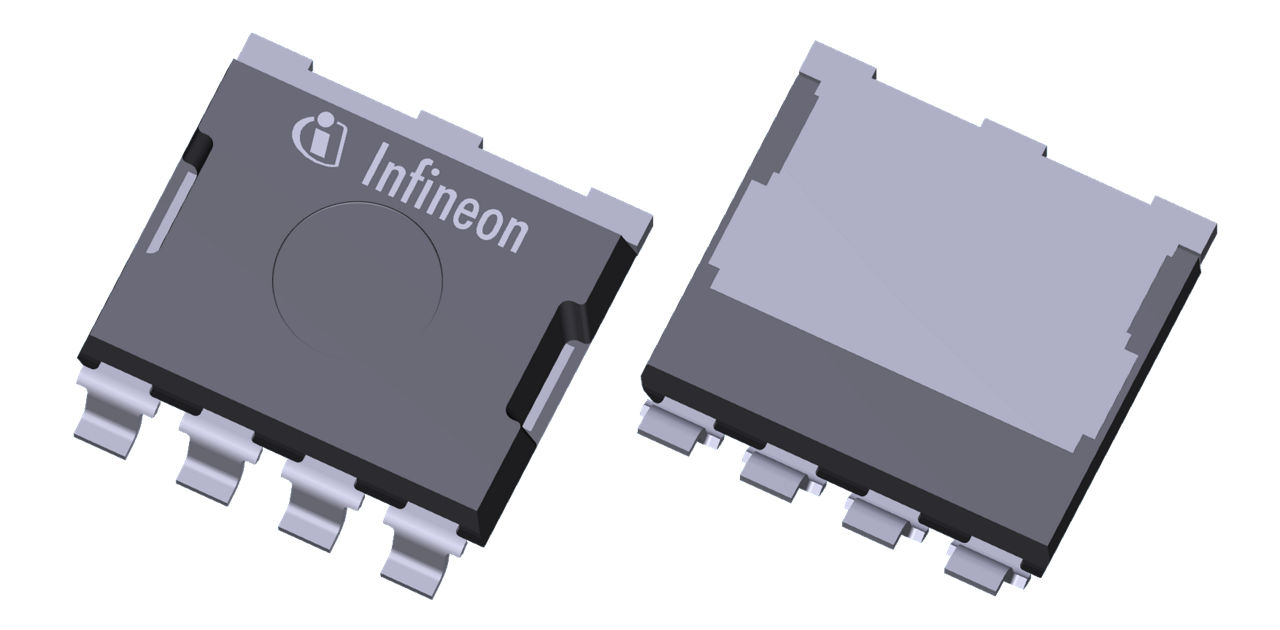

100 V, N-Ch, 1.6 mΩ max, Automotive MOSFET, mTOLG (8x8), OptiMOS™ 5
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IAUMN10S5N016G
IAUMN10S5N016G
ea.
Data Sheet

Product details

  • ID (@25°C) max
    220 A
  • Launch year
    2024
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    PG-HSOG-4
  • Currently planned availability until at least
    2038
  • Polarity
    N
  • QG (typ @10V)
    142 nC
  • Qualification
    Automotive
  • RDS (on) (@10V) max
    1.6 mΩ
  • Technology
    OptiMOS™-5
  • VDS max
    100 V
  • VGS(th)
    3 V
Recommended
OPN
IAUMN10S5N016GAUMA1
Product Status active and preferred
Infineon Package
PG-HSOG-4
Package Name mTOLG
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-HSOG-4
Package Name mTOLG
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
OptiMOS™ 5 100V automotive MOSFET offered in our new mTOLG 8x8mm2 SMD package. It is designed specifically for high performance, high quality and the robustness needed for demanding automotive applications. This mTOLG package MOSFETs is recommended for aluminum (Al) core IMS and copper (Cu) based metal substrates because of its enhanced TCoB performance.

Features

  • Gullwing shaped leads
  • Compatible with other 8x8mm2 packages
  • Leading edge RDS(on)
  • Fast switching times (turn on/off)
  • Extended qualification beyond AEC-Q101
  • Enhanced electrical testing
  • 175°C operating temperature
  • 100% Avalanche tested
  • PPAP Capable Device

Benefits

  • Enhanced temperature cycling results
  • Recommended for metal substrates
  • Minimized conduction losses
  • Excellent switching performance
  • High power density
  • Option to use second source of 8x8mm2
  • Designed for automotive robustness
  • High quality production for automotive

Applications
