not for new design
RoHS Compliant

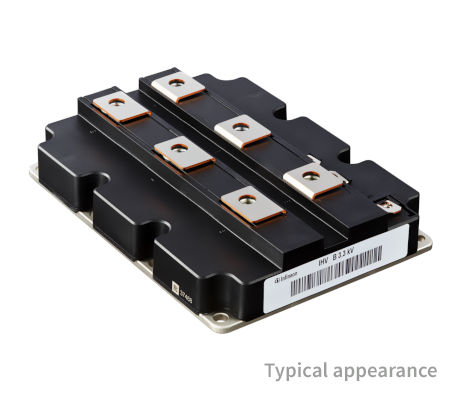

FZ1200R45HL3_S7

4500 V, 1200 A single switch IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FZ1200R45HL3_S7
FZ1200R45HL3_S7
Data Sheet

Product details

  • Configuration
    Single switch
  • Dimensions (width)
    140 mm
  • Dimensions (length)
    190 mm
  • Features
    VGE = 25 V
  • Housing
    IHV B
  • IC(nom) / IF(nom)
    1200 A
  • IC max
    1200 A
  • Qualification
    Industrial, Traction
  • Technology
    IGBT3 - L3
  • VCE(sat) (Tvj=25°C typ)
    2.15 V
  • VCES / VRRM
    4500 V
  • VF (Tvj=25°C typ)
    2.5 V
  • Voltage Class max
    4500 V
OPN
FZ1200R45HL3S7BPSA1
Product Status not for new design
Infineon Package AG-IHVB190
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package AG-IHVB190
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
IHV-B 4500 V, 1200 A 190 mm single switch IGBT Module with Trench/Fieldstop IGBT3, Emitter Controlled 3 diode and isolated AlSiC Base Plate - The best solution for your HVDC application. In comparison to the standard type the _S7 type can be driven with VGE=25 V instead of the usual 15 V

Features

  • High DC stability
  • High short-circuit capability
  • Lowest conduction losses
  • Low VCEsat
  • Rectangular non truncated (RB-)SOA
  • Tvj op=150°C
  • AlSiC base plate with AlN substrate
  • for increased Thermal cycling
  • Fire & smoke EN45545 R22, R23 : HL3
  • Package with CTI > 600
  • Gate emitter voltage of 25 V

Benefits

  • Standardized housing: 190x140x38 mm
  • decades of field experience
  • Long service life
  • Unbeatable dynamic robustness
  • Low FIT Rate
  • UL recognized
  • Remark:
  • EOL since 2023
  • Replacement type is FZ1200R45HL4_S7
