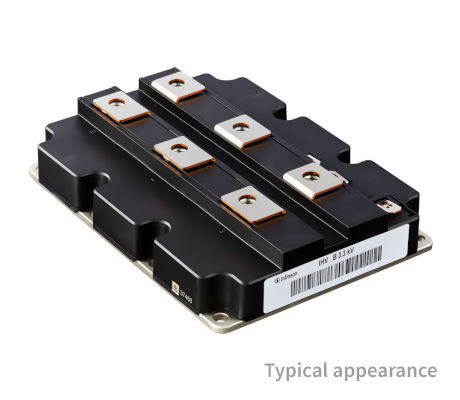

FZ1200R33HE4D_B9

3300 V, 1200 A single switch IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FZ1200R33HE4D_B9
FZ1200R33HE4D_B9
ea.
Data Sheet

Product details

  • Configuration
    Single switch
  • Dimensions (length)
    190 mm
  • Dimensions (width)
    140 mm
  • Features
    Optimized IGBT Diode Ratio
  • Housing
    IHV B
  • IC(nom) / IF(nom)
    1200 A
  • IC max
    1200 A
  • Qualification
    Industrial, Traction
  • Technology
    IGBT4 – E4
  • VCE(sat) (Tvj=25°C typ)
    2.4 V
  • VCES / VRRM
    3300 V
  • VF (Tvj=25°C typ)
    2.6 V
  • Voltage Class max
    3300 V
Recommended
OPN
FZ1200R33HE4DB9BPSA1
Product Status active and preferred
Infineon Package AG-IHVB190
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-IHVB190
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • High DC stability
  • High short-circuit capability
  • Low switching losses
  • Low VCEsat
  • Rectangular non truncated (RB-)SOA
  • Tvj op=150°C
  • AlSiC base plate with AlN substrate
  • for increased Thermal cycling
  • Fire & smoke EN45545 R22, R23 : HL3
  • Package with CTI > 600
  • 2x PowerCycling vs state of the art
  • Enlarged diode for regeneration

Benefits

  • Standardized housing: 190x140x38 mm
  • Unbeatable dynamic robustness
  • Long service life
  • 2xPC = 110% power at same lifetime
  • or 200% lifetime
  • or 8K more safety buffer
  • Fault current RBSOA up to 3000 A
  • Performance like any 1500 A 3.3 kV
  • 1:1 mechanical compatible:
  • to three former generations
  • Low FIT Rate
  • UL recognized
