not for new design
RoHS Compliant

FZ1000R33HE3

3300 V, 1000 A single switch IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FZ1000R33HE3
FZ1000R33HE3
Data Sheet

Product details

  • Configuration
    Single switch
  • Dimensions (length)
    130 mm
  • Dimensions (width)
    140 mm
  • Housing
    IHV B
  • IC(nom) / IF(nom)
    1000 A
  • IC max
    1000 A
  • Qualification
    Industrial, Traction
  • Technology
    IGBT3 - E3
  • VCE(sat) (Tvj=25°C typ)
    2.55 V
  • VCES / VRRM
    3300 V
  • VF (Tvj=25°C typ)
    3.1 V
  • Voltage Class max
    3300 V
OPN
FZ1000R33HE3BPSA1
Product Status not for new design
Infineon Package AG-IHVB130
Package Name N/A
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package AG-IHVB130
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
IHV B 3300 V , 1000 A 130 mm single-switch IGBT Module with TRENCHSTOP™ IGBT 3 and Emitter Controlled diode - The experienced solution for traction and industry applications.Also available as soft switching, low loss device: FZ1000R33HL3

Features

  • High DC stability
  • Decades of field experience
  • Low switching losses
  • Low VCEsat
  • Tvj op=150°C
  • AlSiC base plate with AlN substrate
  • for increased Thermal cycling
  • Fire & smoke EN45545 R22, R23 : HL3
  • Package with CTI > 600

Benefits

  • Standardized housing: 130x140x38 mm
  • decades of field experience
  • Long service life
  • Tough against overloads & faults
  • Low FIT Rate
  • UL recognized
  • Remark:
  • Not recommended for new Design
  • Alternative is FZ825R33HE4D

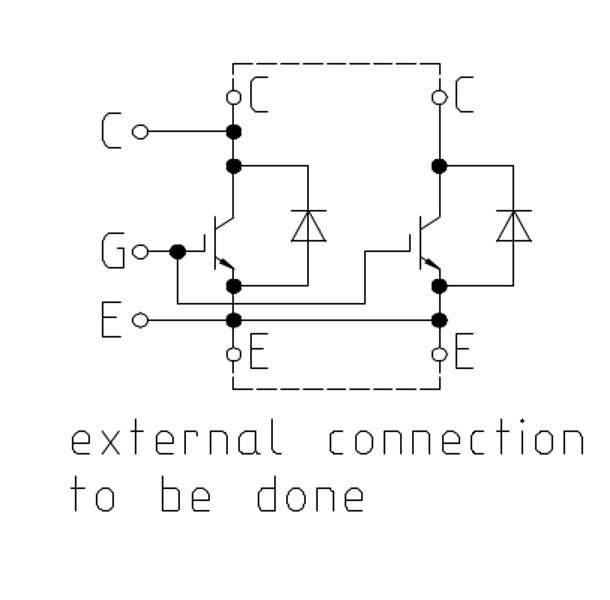

Diagrams

IHV_A_FZ
IHV_A_FZ
IHV_A_FZ IHV_A_FZ IHV_A_FZ
×
