FS400R07A3E3

END OF LIFE
HybridPACK™ DC6 705 V, 400 A 3-phase six-pack TRENCHSTOP™ IGBT3 designed for electric vehicle applications
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS400R07A3E3
FS400R07A3E3
Data Sheet

Product details

  • Applications
    eMobility, Hybrid Electric Vehicles, Drives, CAV, Aircon
  • Configuration
    Sixpack
  • Cooling Concept
    Flat baseplate
  • Dimensions (length)
    128 mm
  • Dimensions (width)
    98 mm
  • Features
    Flat Baseplate
  • Housing
    HybridPACK™ DC6
  • IC(nom) / IF(nom)
    400 A
  • IC max
    400 A
  • Qualification
    Automotive
  • Technology
    IGBT3 - E3
  • VCE(sat) (Tvj=25°C typ)
    1.45 V
  • VCES (Tvj=25°C typ)
    705 V
  • VF (Tvj=25°C typ)
    1.55 V
  • Voltage Class max
    705 V
OPN
FS400R07A3E3BOMA1
Product Status discontinued
Infineon Package AG-HP1-311
Package Name N/A
Packing Size 16
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package AG-HP1-311
Package Name -
Packing Size 16
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

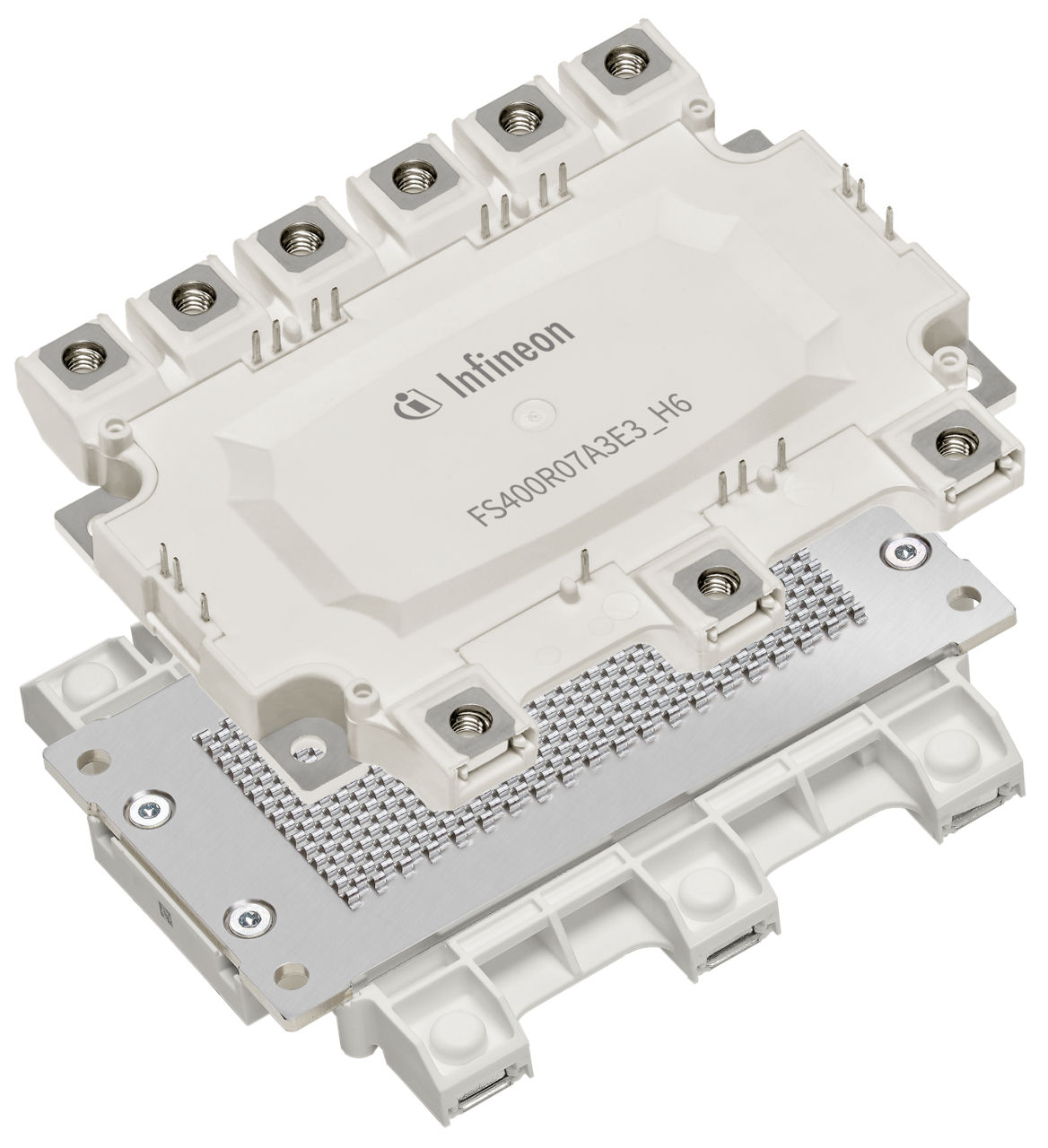

Infineon's HybridPACKTM power module, with extensive IGBT development experience and research, offers superior thermal performance and reliability for mild hybrid inverters or generators. Suitable for air or liquid cooling, it features a copper base plate, high-performance ceramic substrate, and enhanced wire-bonding. Achieve a compact design by soldering the driver stage PCB on top, power connections are made with screw terminals.

Features

  • Increased blocking V capability to 705 V
  • VCEsat temp coefficient
  • Low VCEsat
  • Low switching losses
  • Low inductive design
  • Tvj op = 150°C
  • 2.5 kV AC 1min insulation
  • Al2O3resistance
  • Copper base plate
  • Integrated NTC temperature sensor
  • High mechanical robustness

Applications

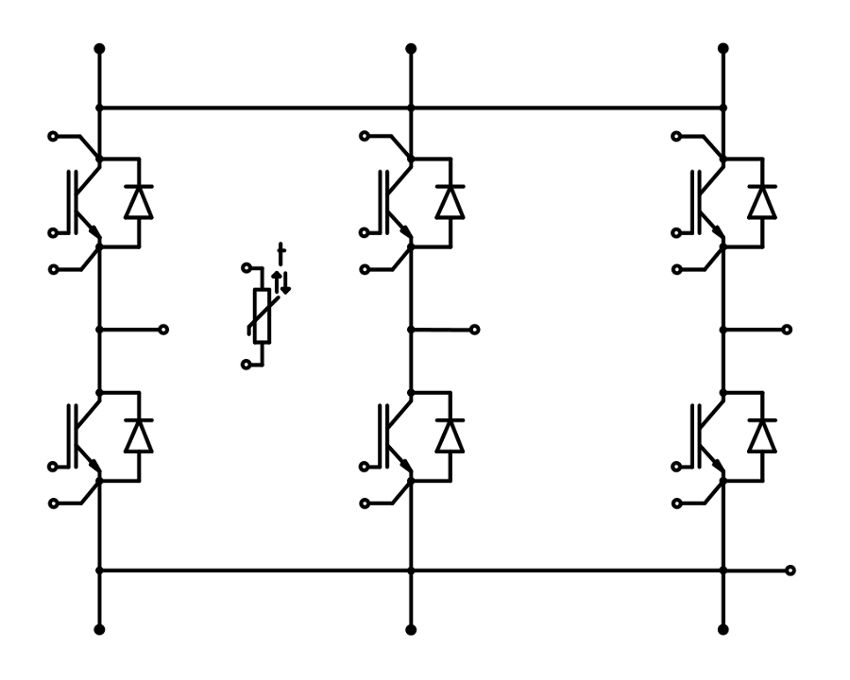

Diagrams
