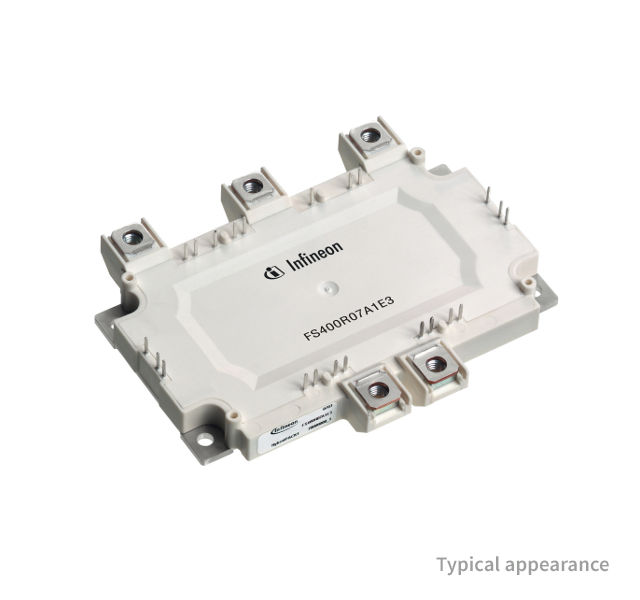

FS400R07A1E3_S7

END OF LIFE
HybridPACK™ 1 705 V, 400 A 3-phase six-pack TRENCHSTOP™ IGBT3 with emitter controlled diode
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS400R07A1E3_S7
FS400R07A1E3_S7
Data Sheet

Product details

  • Applications
    eMobility, Hybrid Electric Vehicles, Drives, CAV, Aircon
  • Configuration
    Sixpack
  • Cooling Concept
    Flat baseplate
  • Dimensions (length)
    128 mm
  • Dimensions (width)
    98 mm
  • Features
    Flat Baseplate
  • Housing
    HybridPACK™ 1
  • IC(nom) / IF(nom)
    400 A
  • IC max
    400 A
  • Qualification
    Automotive
  • Technology
    IGBT3 - E3
  • VCE(sat) (Tvj=25°C typ)
    1.45 V
  • VCES (Tvj=25°C typ)
    705 V
  • VF (Tvj=25°C typ)
    1.55 V
  • Voltage Class max
    705 V
OPN
FS400R07A1E3S7BOMA1
Product Status discontinued
Infineon Package AG-HP1-311
Package Name N/A
Packing Size 16
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package AG-HP1-311
Package Name -
Packing Size 16
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The HybridPACKTM 1 is an automotive-qualified power module designed for electric vehicle applications. It features a 700V, 400A 3-phase six-pack TRENCHSTOPTM IGBT3 with an emitter-controlled diode, suitable for air or liquid cooling. Its design allows for easy soldering of the driver stage PCB on top of the module, with all power connections realized with screw terminals.

Features

  • Increased blocking V capability to 705 V
  • VCEsat temp coefficient
  • Low VCEsat
  • Low switching losses
  • Tvj op=150°C
  • Short-time tempTvj op=175°C
  • Al2O3resistance
  • Copper base plate
  • Integrated NTC temperature sensor
  • High mechanical robustness
  • RoHS compliant
