FS200R07A5E3_S6

END OF LIFE
650 V, 200 A sixpack automotive qualified IGBT module
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS200R07A5E3_S6
FS200R07A5E3_S6
Data Sheet

Product details

  • Applications
    eMobility, Hybrid Electric Vehicles, Drives, CAV, Aircon
  • Configuration
    Sixpack
  • Cooling Concept
    Flat baseplate
  • Dimensions (width)
    74 mm
  • Dimensions (length)
    76 mm
  • Features
    Flat Baseplate
  • Housing
    HybridPACK™ Light
  • IC(nom) / IF(nom)
    200 A
  • IC max
    200 A
  • Qualification
    Automotive
  • Technology
    IGBT3 - E3
  • VCE(sat) (Tvj=25°C typ)
    1.45 V
  • VCES (Tvj=25°C typ)
    705 V
  • VF (Tvj=25°C typ)
    1.6 V
  • Voltage Class max
    650 V
OPN
FS200R07A5E3S6BPSA1
Product Status discontinued
Infineon Package
AG-HYBRIDL-1
Package Name N/A
Packing Size 12
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
AG-HYBRIDL-1
Package Name -
Packing Size 12
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

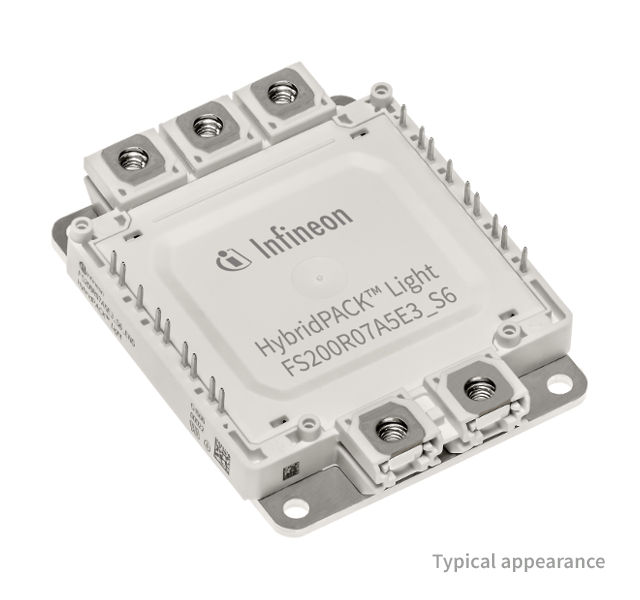

HybridPACK™ Light 700 V, 200 A six-pack TRENCHSTOP™ IGBT3 is a very compact IGBT module targeting mild hybrid vehicles with power levels up to 20 kW. The module is based on established solder and screw interconnections known from HybridPACK™ 1. Improved stray inductance and blocking voltage offer lowest conduction and switching losses especially at inverter maximum ratings.

Features

  • Increased blocking voltage capability to 705 V
  • Low switching losses
  • Tvjop=150°C
  • VCEsat with positive temperature coefficient
  • 2.5 kV AC 1min Insulation
  • Al2O3 Substrate with low thermal resistance
  • High mechanical robustness
  • Integrated NTC temperature sensor
  • Copper base plate
  • RoHS compliant
