FS1150R08A8P3LBC

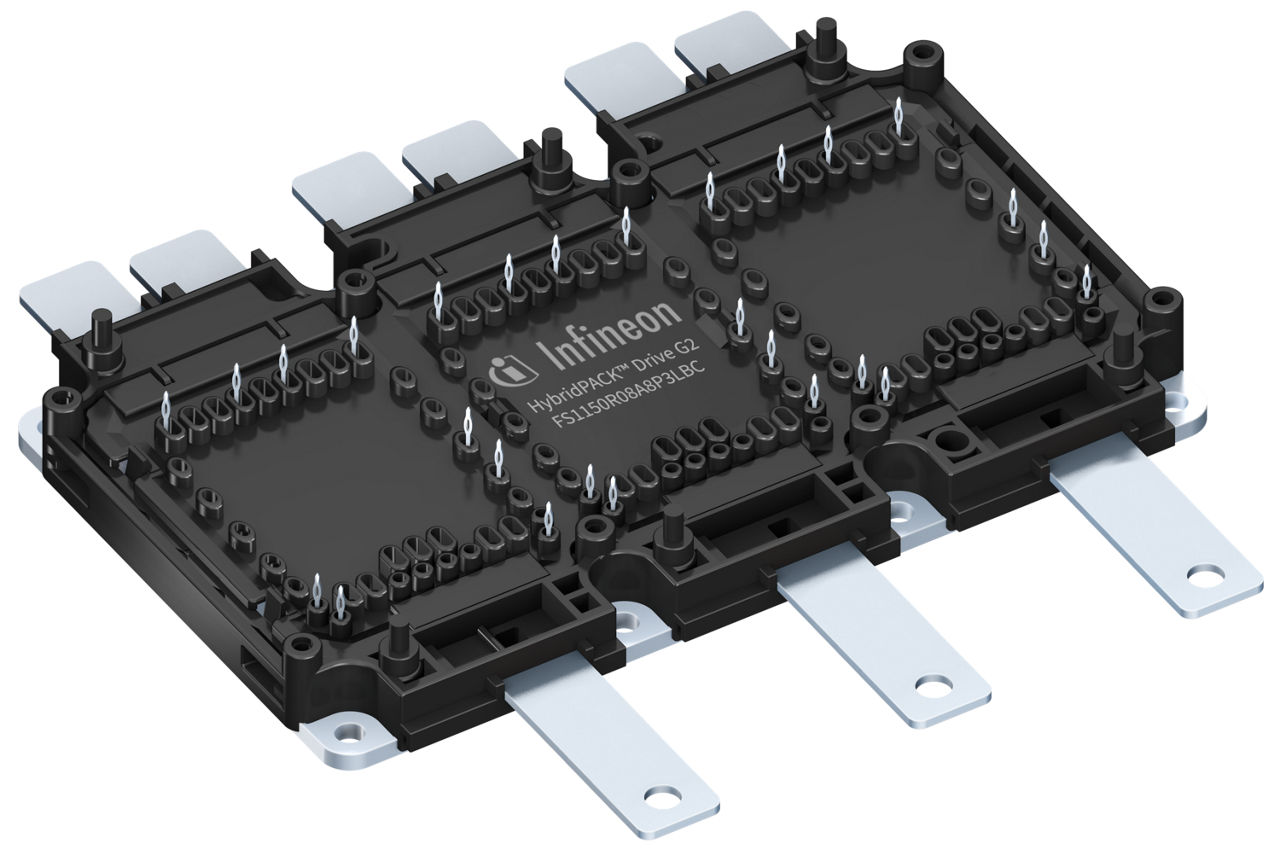

This HybridPACK™ Drive G2 module is a very compact six-pack power module with enhanced package optimized for hybrid and electric vehicles
Data Sheet
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS1150R08A8P3LBC
FS1150R08A8P3LBC
ea.
Data Sheet

Product details

  • Configuration
    Sixpack
  • Features
    PinFin Base Plate, Long Tabs
  • Housing
    HybridPACK™ Drive G2
  • IC(nom) / IF(nom)
    1150 A
  • Launch year
    2024
  • Currently planned availability until at least
    2038
  • Qualification
    Automotive
  • Technology
    IGBT EDT3
  • VCE(sat) (Tvj=25°C typ)
    1.08 V
  • VCES (Tvj=25°C typ)
    750 V
Recommended
OPN
FS1150R08A8P3LBCHPSA1
Product Status active and preferred
Infineon Package AG-HDG2XT-7661
Package Name N/A
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-HDG2XT-7661
Package Name -
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • VCES = 750 V
  • ICN = 1150 A / ICRM = 2300 A
  • Blocking voltage 750 V
  • Low VCE,sat
  • Low switching losses
  • Low Qg and Crss
  • Low inductive design
  • 4.2 kV DC 1 second insulation
  • High creepage and clearance distances
  • Direct-cooled PinFin base plate
  • PCB and cooler assembly guidelines
  • PressFIT contact technology

Benefits

  • Higher temperature cycling capability
  • Integrated diode temperature sensors
  • New plastic material
  • Better temperature capability
  • New frame design
  • Lower system BOM
  • Lower AC contact resistance
  • Lower tab temperature
  • PressFIT Contact Technology
  • RoHS compliant
  • Completely Pb free
  • Superior reliability
