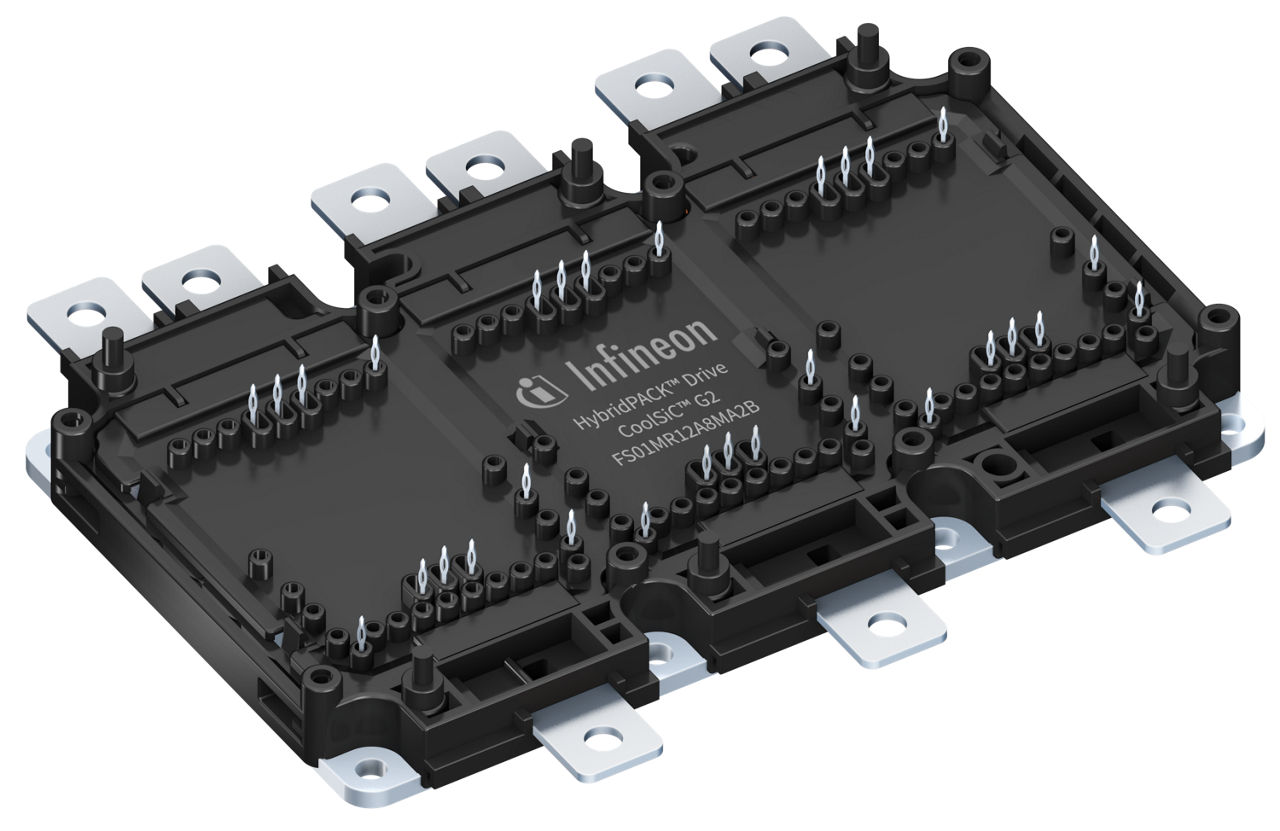

FS01MR12A8MA2B

HybridPACK™ Drive G2 CoolSiC™: Compact 1200V/500A B6-bridge power module optimized for inverter various power classes
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS01MR12A8MA2B
FS01MR12A8MA2B
ea.
Data Sheet

Product details

  • Configuration
    Sixpack
  • Family
    Silicon Carbide MOSFET Modules
  • Features
    PinFin Base Plate, short Tabs
  • Housing
    HybridPACK™ Drive G2
  • Launch year
    n.a.
  • Planned to be available until at least
    2040
  • Qualification
    Automotive
  • Technology
    CoolSiC™ G2
  • VCES (Tvj=25°C typ)
    1200 V
  • Voltage Class max
    1200 V
Recommended
OPN
FS01MR12A8MA2BHPSA1
Product Status active and preferred
Infineon Package AG-HDG2XT-3311
Package Name N/A
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-HDG2XT-3311
Package Name -
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The power module implements the second generation CoolSiC™ Automotive MOSFET 1200V, optimized for electric drive train applications, from mid- to high-range automotive power classes to high-range commercial, construction, and agricultural vehicles.

Features

  • Short-time operation at Tvj,op = 200 °C
  • Guide elements for PCB & cooler assembly
  • Silicon carbide material
  • Low RDS(on)
  • Low switching losses
  • Tvj,op = 175°C
  • 4.2kV DC 1s insulation
  • High power density
  • Direct-cooled PinFin base plate
  • Integrated temp sensing diode
  • PressFIT contact technology
  • Compact design

Benefits

  • Higher temperature cycling capability
  • Integrated diode temperature sensors
  • New plastic material
  • Better temperature capability
  • Lower system BOM
  • Lower AC contact resistance
  • Lower tab temperature
  • PressFIT Contact Technology
  • RoHS compliant
  • Completely Pb free
  • Superior reliability
