FS01MR08A8MA2C

NEW

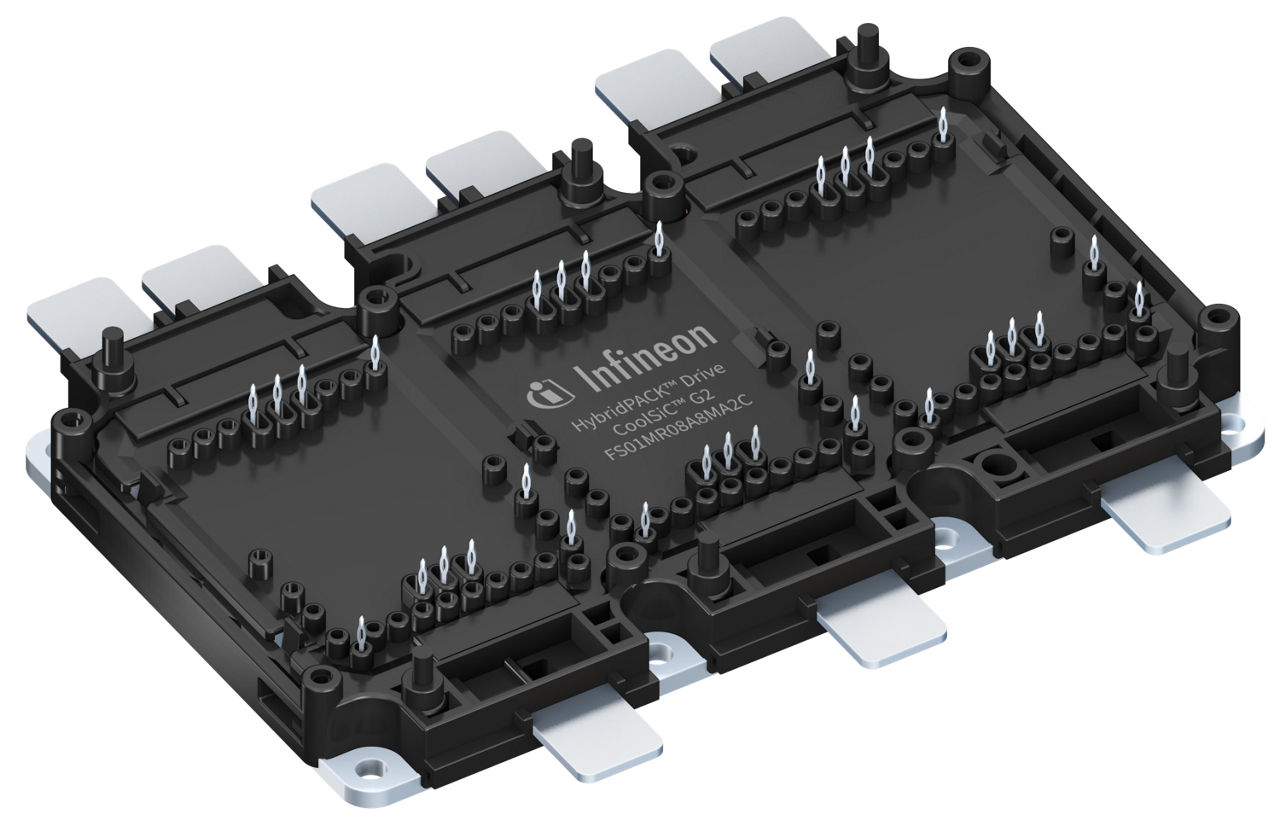

This HybridPACK™ Drive G2 CoolSiC™ G2 module is a highly compact B6-bridge power module (750V/620A) with enhanced package optimized for various inverter power classes.
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS01MR08A8MA2C
FS01MR08A8MA2C
ea.
Data Sheet

Product details

  • Configuration
    Sixpack
  • Features
    PinFin Base Plate, short tabs without hole
  • Housing
    HybridPACK™ Drive G2
  • Launch year
    2025
  • Planned to be available until at least
    2038
  • Qualification
    Automotive
  • RthJC max
    0.118 K/W
  • Technology
    CoolSiC™ G2
  • VCES (Tvj=25°C typ)
    750 V
  • Voltage Class max
    750 V
Recommended
OPN
FS01MR08A8MA2CHPSA1
Product Status active and preferred
Infineon Package AG-HDG2XT-3311
Package Name N/A
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-HDG2XT-3311
Package Name -
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
This HybridPACK™ Drive G2 CoolSiC™ G2 module is a highly compact B6-bridge power module (750V/620A) with enhanced package optimized for various inverter power classes.

Features

  • New semicond. material - silicon carbide
  • Low RDS(on)
  • Low switching losses
  • Low Qg and Crss
  • High creepage and clearance distances
  • Compact design
  • 4.2 kV DC 1 second insulation
  • High power density
  • Direct-cooled PinFin base plate
  • High-performance Si3N4 ceramic
  • PCB and cooler assembly guidelines
  • Integrated temperature sensing diode

Benefits

  • Higher temperature cycling capability
  • Integrated diode temperature sensors
  • New plastic material
  • Better temperature capability
  • Lower system BOM
  • Lower AC contact resistance
  • Lower tab temperature
  • PressFIT Contact Technology
  • RoHS compliant
  • Completely Pb free
  • Superior reliability
