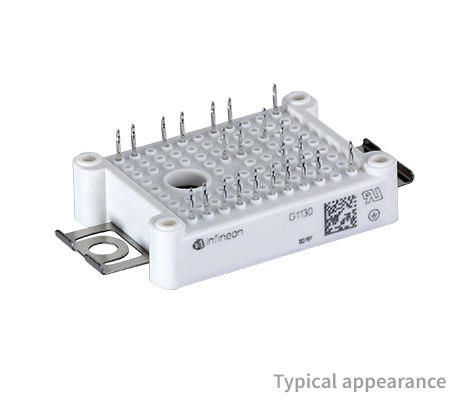

FP20R06W1E3_B11

600 V, 20 A PIM IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FP20R06W1E3_B11
FP20R06W1E3_B11
ea.
Data Sheet

Product details

  • Configuration
    PIM
  • Dimensions (length)
    48 mm
  • Dimensions (width)
    33.8 mm
  • Features
    PressFIT
  • Housing
    EasyPIM™ 1B
  • IC(nom) / IF(nom)
    20 A
  • IC max
    20 A
  • Qualification
    Industrial
  • Technology
    IGBT3 - E3
  • VCE(sat) (Tvj=25°C typ)
    1.55 V
  • VCES / VRRM
    600 V
  • VF (Tvj=25°C typ)
    1.6 V
  • Voltage Class max
    600 V
Recommended
OPN
FP20R06W1E3B11BOMA1
Product Status active and preferred
Infineon Package AG-EASY1B
Package Name N/A
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-EASY1B
Package Name -
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EasyPIM™ 1B 600 V, 20 A IGBT module with Trench/Fieldstop IGBT, Emitter Controlled 3 diode, NTC and PressFIT Contact Technology .Also available as variation with Soldering connection technology: FP20R06W1E3

Features

  • Low switching losses
  • Trench IGBT3
  • VCEsatwith positive temp. coeffi.
  • Low VCEsat
  • Al2O3 substrate
  • Compact design
  • PressFIT contact technology
  • Rugged mounting
  • Integrated mounting clamps
