Active and preferred
RoHS Compliant

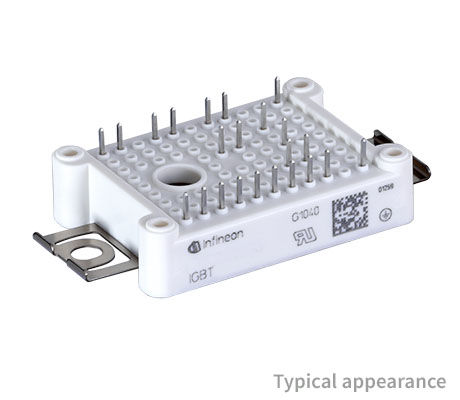

FP20R06W1E3

600 V, 20 A PIM IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FP20R06W1E3
FP20R06W1E3
Data Sheet

Product details

  • Configuration
    PIM
  • Dimensions (length)
    48 mm
  • Dimensions (width)
    33.8 mm
  • Housing
    EasyPIM™ 1B
  • IC(nom) / IF(nom)
    20 A
  • IC max
    20 A
  • Qualification
    Industrial
  • Technology
    IGBT3 - E3
  • VCE(sat) (Tvj=25°C typ)
    1.55 V
  • VCES / VRRM
    600 V
  • VF (Tvj=25°C typ)
    1.6 V
  • Voltage Class max
    600 V
Recommended
OPN
FP20R06W1E3BOMA1
Product Status active and preferred
Infineon Package AG-EASY1B
Package Name N/A
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-EASY1B
Package Name -
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EasyPIM™ 1B 600 V, 20 A PIM IGBT module with TRENCHSTOP™ IGBT3, Emitter Controlled 3 diode and NTC. Also available as variation with PressFIT mounting technology: FP20R06W1E3_B11

Features

  • Low switching losses
  • Trench IGBT3
  • VCEsatwith positive temp. coeffici.
  • Low VCEsat
  • Al2O3 substrate
  • Compact design
  • Solder contact technology
  • Rugged mounting
  • Integrated mounting clamps
