Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
END OF LIFE
discontinued
RoHS Compliant

FP10R12W1T4P

END OF LIFE
1200 V, 10 A PIM IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FP10R12W1T4P
FP10R12W1T4P
Data Sheet

Product details

  • Configuration
    PIM
  • Dimensions (width)
    33.8 mm
  • Dimensions (length)
    48 mm
  • Features
    TIM
  • Housing
    EasyPIM™ 1B
  • IC(nom) / IF(nom)
    10 A
  • IC max
    10 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - T4
  • VCE(sat) (Tvj=25°C typ)
    1.85 V
  • VF (Tvj=25°C typ)
    1.75 V
  • Voltage Class max
    1200 V
OPN
FP10R12W1T4PBPSA1
Product Status discontinued
Infineon Package AG-EASY1B
Package Name N/A
Packing Size 30
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package AG-EASY1B
Package Name -
Packing Size 30
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

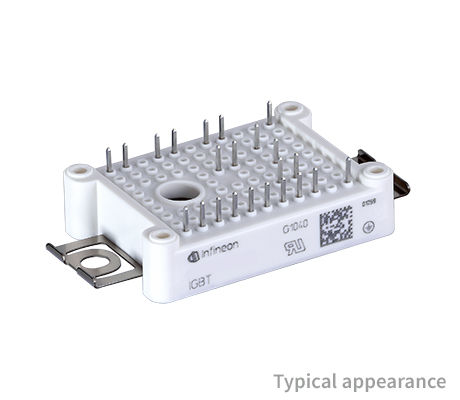

EasyPIM™ 1B 1200 V, 10 A three phase input rectifier PIM (Power Integrated Modules) IGBT module with fast TRENCHSTOP™ IGBT4, Emitter Controlled 4 diode, NTC and pre-applied Thermal Interface Material. Also available as variation with PressFIT mounting technology: FP10R12W1T4P_B11 .

Features

  • Low switching losses
  • VCEsatwith positive temp. coeffi.
  • Low VCEsat
  • Al 2O 3 substrate
  • Compact design
  • Solder contact technology
  • Integrated mounting clamps
