Active and preferred
RoHS Compliant

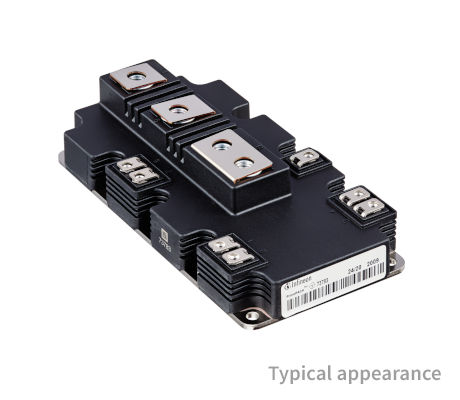

FF900R12IE4P

1200 V, 900 A dual IGBT module
Data Sheet
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF900R12IE4P
FF900R12IE4P
ea.
Data Sheet

Product details

  • Configuration
    half-bridge
  • Dimensions (length)
    172 mm
  • Dimensions (width)
    89 mm
  • Features
    TIM
  • Housing
    PrimePACK™ 2
  • IC(nom) / IF(nom)
    900 A
  • IC max
    900 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    1.75 V
  • VF (Tvj=25°C typ)
    1.9 V
  • Voltage Class max
    1200 V
Recommended
OPN
FF900R12IE4PBOSA1
Product Status active and preferred
Infineon Package AG-PRIME2
Package Name N/A
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-PRIME2
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
PrimePACK™ 2 1200 V, 900 A half-bridge dual IGBT module with TRENCHSTOP™ IGBT4, Emitter Controlled 4 Diode, NTC, fast switching chip and pre-applied Thermal Interface Material.

Features

  • Extended operation temp. Tvj op
  • High DC stability
  • High short circuit capability
  • Low switching losses
  • Unbeatable robustness
  • VCEsatwith positive temp. coeffici.
  • 4 kV AC 1 min insulation
  • Package with CTI > 400
  • High creepage & clearance distances
  • High power & thermal cycling capab.
  • Substrate for low therm. resistance
  • UL recognized
