FF5MR20KM1H_S

NEW

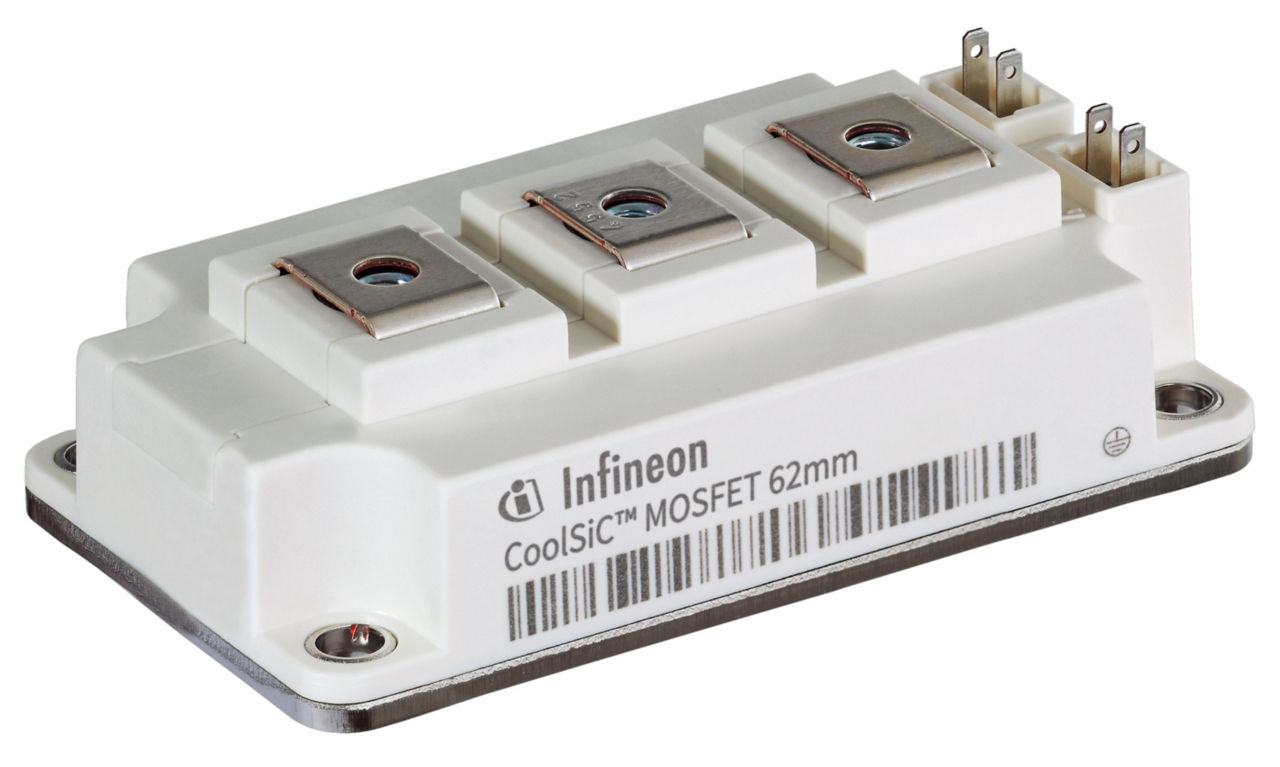

62mm CoolSiC™ MOSFET half bridge module 2000 V in common source topology
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF5MR20KM1H_S
FF5MR20KM1H_S
ea.
Data Sheet

Product details

  • Applications
    SSCB, UPS, Solar, EV Charger, ESS
  • Configuration
    Half-bridge
  • Dimensions (length)
    106.4 mm
  • Dimensions (width)
    61.4 mm
  • Features
    Common Source
  • Housing
    62 mm
  • Launch year
    2025
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    5.2 mΩ
Recommended
OPN
FF5MR20KM1HSHPSA1
Product Status active and preferred
Infineon Package AG-62MMHB
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-62MMHB
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
62 mm CoolSiC™ MOSFET half bridge module 2000 V, 5 mOhm RDS(on) in the well known 62mm housing combined with M1H chip technology. Now also available with common source configuration

Features

  • Robust integrated body diode, and thus optimal thermal conditions
  • Highest robustness against humidity
  • Superior gate oxide reliability
  • High cosmic ray robustness
  • Common source configuration

Benefits

  • Optimized use under demanding conditions
  • Lower voltage overshoot
  • Minimized conduction losses
  • High speed switching with very low losses
  • Symmetrical module design and switching behavior of upper and lower switch
  • Standard module construction technique secures known reliable
  • Production in the 62mm high volume production line

Applications
