FF450R12KE7_E

1200 V, 450 A common emitter IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF450R12KE7_E
FF450R12KE7_E
ea.
Data Sheet

Product details

  • Configuration
    Common Emitter
  • Dimensions (width)
    61.4 mm
  • Dimensions (length)
    106.4 mm
  • Housing
    62 mm
  • IC(nom) / IF(nom)
    450 A
  • IC max
    450 A
  • Qualification
    Industrial
  • Technology
    IGBT7 - E7
  • VCE(sat) (Tvj=25°C typ)
    1.5 V
  • VF (Tvj=25°C typ)
    1.8 V
  • Voltage Class max
    1200 V
Recommended
OPN
FF450R12KE7EHPSA1
Product Status active and preferred
Infineon Package AG-62MMHB
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-62MMHB
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

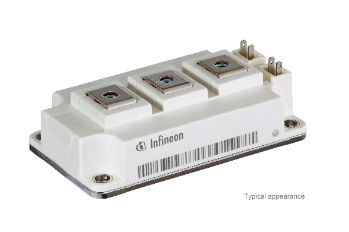

62 mm 1200 V, 450 A common emitter IGBT module with TRENCHSTOP™ IGBT7 and emitter controlled diode.

Features

  • Highest power density
  • Best-in-class VCEsat
  • Tvj op = 175°C overload
  • High creepage and clearance distances
  • Isolated base plate
  • Standard housing
  • RoHS compliant
  • 4 kV AC 1 min Insulation
  • Package with CTI > 400
  • UL/CSA certification with UL1557 E83336

Benefits

  • higher current capability
  • for NPC2 in 3-level configuration
  • Highest power density
  • Avoidance of paralleling of IGBT modules
  • Reduced system costs
  • Highest reliability

Documents

Documents

Design resources

Partner solutions
