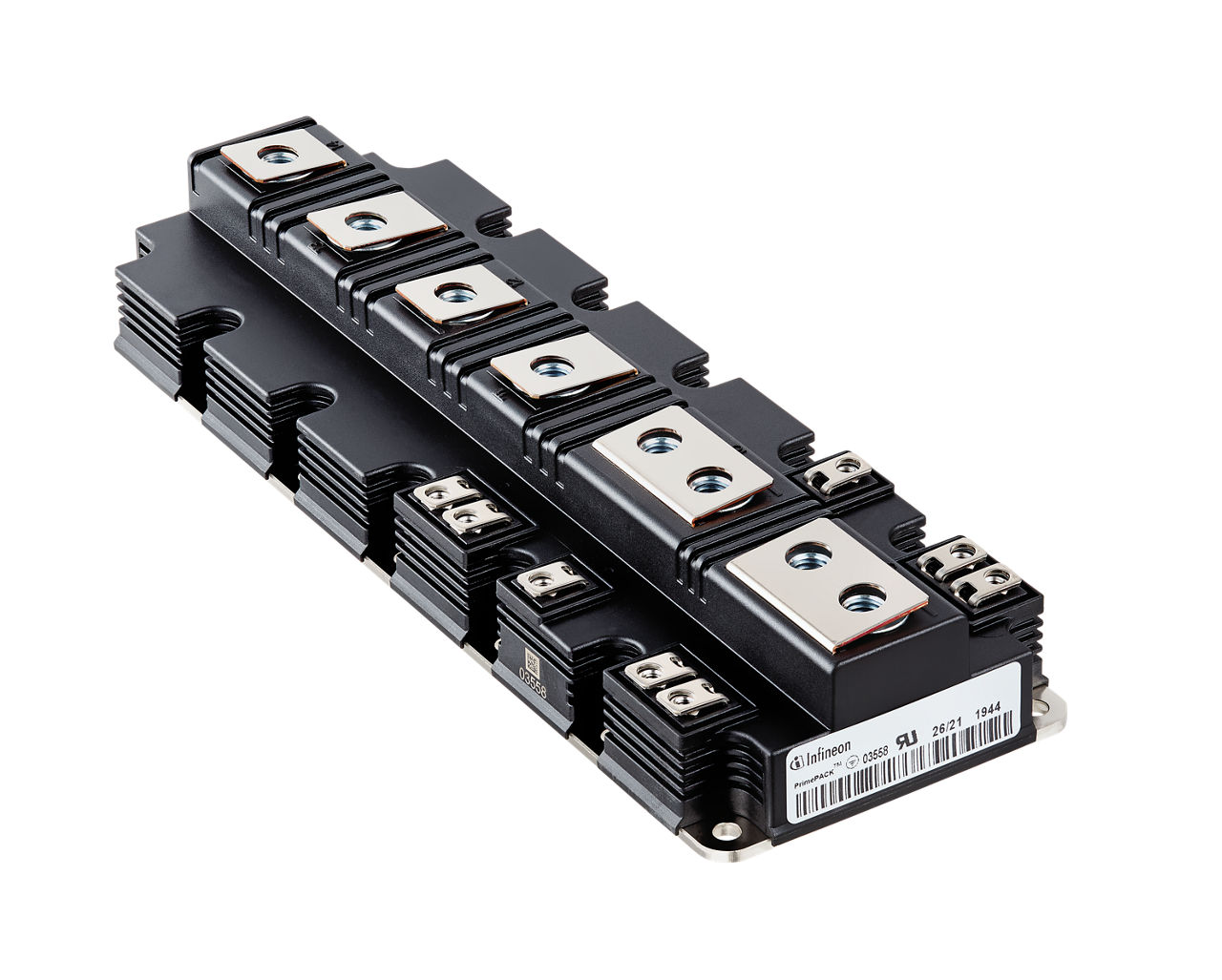

FF1800R23IE7P

2300 V, 1800 A dual IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF1800R23IE7P
FF1800R23IE7P
Data Sheet

Product details

  • Configuration
    half-bridge
  • Dimensions (length)
    250 mm
  • Dimensions (width)
    89 mm
  • Features
    TIM
  • Housing
    PrimePACK™ 3+
  • IC(nom) / IF(nom)
    1800 A
  • IC max
    1800 A
  • Qualification
    Industrial
  • Technology
    IGBT7 - E7
  • VCE(sat) (Tvj=25°C typ)
    1.8 V
  • VCES / VRRM
    2300 V
  • VF (Tvj=25°C typ)
    3.25 V
  • Voltage Class max
    2300 V
Recommended
OPN
FF1800R23IE7PBPSA1
Product Status active and preferred
Infineon Package AG-PRIME3+
Package Name N/A
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-PRIME3+
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
PrimePACK™ 3+ 2300 V, 1800 A dual IGBT module with TRENCHSTOP™ IGBT7 , Emitter Controlled 7 diode and NTC with pre-applied Thermal Interface Material .

Features

  • New voltage class of 2300 V
  • Low CR-FIT rate <100 FIT @1500V*
  • *25 °C, 0 meters above sea level
  • High current rating 1800 A
  • PrimePACK™ 3+ package
  • Short-term overload temp. op.
  • (Tvjop,max = 175 °C, <1 s)
  • Package with CTI >400

Documents

Documents

Design resources

Partner solutions

Developer community
