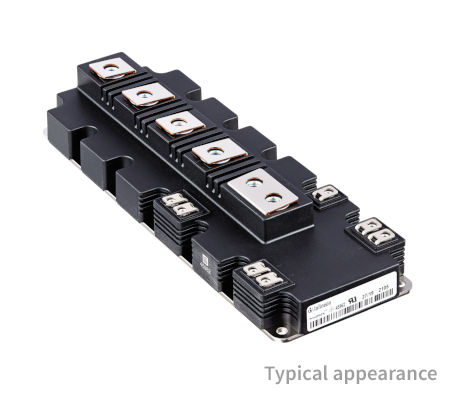

FF1500R17IP5R

1700 V, 1500 A dual IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF1500R17IP5R
FF1500R17IP5R
Data Sheet

Product details

  • Configuration
    half-bridge
  • Dimensions (width)
    89 mm
  • Dimensions (length)
    250 mm
  • Features
    .XT Technology
  • Housing
    PrimePACK™ 3
  • IC(nom) / IF(nom)
    1500 A
  • IC max
    1500 A
  • Qualification
    Industrial
  • Technology
    IGBT5 - P5
  • VCE(sat) (Tvj=25°C typ)
    1.75 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    1.75 V
  • Voltage Class max
    1700 V
Recommended
OPN
FF1500R17IP5RBPSA1
Product Status active and preferred
Infineon Package AG-PRIME3
Package Name N/A
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-PRIME3
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
PrimePACK™ 3 1700 V, 1500 A dual IGBT module with TRENCHSTOP™ IGBT 5, .XT interconnection technology, Emitter Controlled 5 diode, NTC and one AC Terminal. The version with two AC Terminals is also available: FF1500R17IP5

Features

  • Extended Tvjop= 175°C
  • High current density
  • Low switching losses
  • Low VCEsat
  • High creepage & clearance distances
  • High power & thermal cycling capab.
