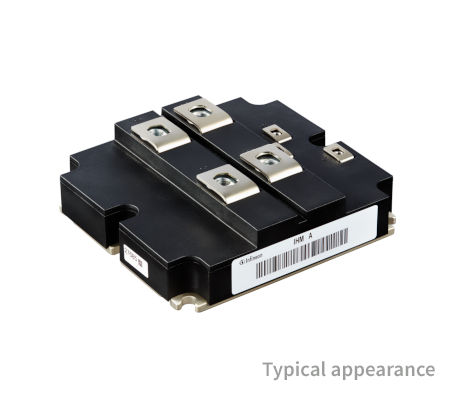

FF1200R17KP4_B2

END OF LIFE
1700 V, 1200 A dual IGBT module
Data Sheet
View replacement

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF1200R17KP4_B2
FF1200R17KP4_B2
View replacement
Data Sheet

Product details

  • Configuration
    Dual
  • Dimensions (length)
    130 mm
  • Dimensions (width)
    140 mm
  • Features
    Enlarged Diode
  • Housing
    IHM
  • IC(nom) / IF(nom)
    1200 A
  • IC max
    1200 A
  • Qualification
    Industrial, Traction
  • Technology
    IGBT4 - P4
  • VCE(sat) (Tvj=25°C typ)
    1.9 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    1.65 V
  • Voltage Class max
    1700 V
OPN
FF1200R17KP4B2NOSA2
Product Status discontinued
Infineon Package A-IHM130
Package Name N/A
Packing Size 2
Packing Type TRAY
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package A-IHM130
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
IHM 1700 V, 1200 A, 130mm dual IGBT module with soft-switching Trench/fieldstop IGBT4 and emitter controlled 3 diode.

Features

  • Low V(cesat)
  • Enlarged diode for regen. operation
  • 4 kV AC 1min insulation
  • AlSiC base plate
  • Increas. thermal cycling capability
  • UL recognised
  • High power & thermal cycling capab.
