not for new design

FF1200R17KE3

1700 V, 1200 A dual IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF1200R17KE3
FF1200R17KE3
ea.
Data Sheet

Product details

  • Configuration
    Dual
  • Dimensions (length)
    130 mm
  • Dimensions (width)
    140 mm
  • Housing
    IHM
  • IC(nom) / IF(nom)
    1200 A
  • IC max
    1200 A
  • Qualification
    Industrial
  • Technology
    IGBT3 - E3
  • VCE(sat) (Tvj=25°C typ)
    2 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    1.8 V
  • Voltage Class max
    1700 V
OPN
FF1200R17KE3NOSA1
Product Status not for new design
Infineon Package A-IHM130
Package Name N/A
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package A-IHM130
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
IHM 1700 V, 1200 A 130 mm Dual IGBT Module with IGBT3.

Features

  • High reliability
  • Robust module construction
  • UL recognised

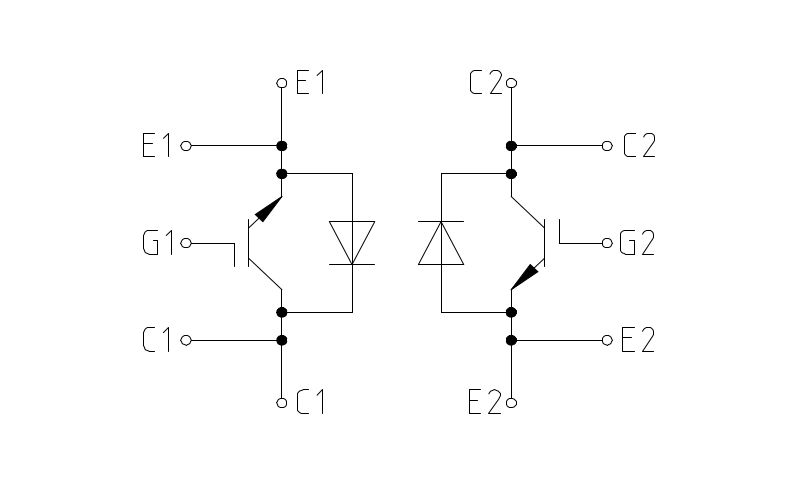

Diagrams

IHM_Dual
IHM_Dual
IHM_Dual IHM_Dual IHM_Dual
×
