FF01MR14A60MA2XT
NEW
Active and preferred
RoHS Compliant

FF01MR14A60MA2XT

NEW
HybridPACK™ HD –Powering a reliable, TCO optimized converter for e Commerical Vehicles
Datasheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF01MR14A60MA2XT
FF01MR14A60MA2XT
Datasheet

Product details

  • Applications
    eCAV, High Power MW charging
  • Configuration
    Half-bridge
  • Features
    .XT interconnection technology
  • Housing
    HybridPACK™ HD
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    1 mΩ
Recommended
OPN
FF01MR14A60MA2XTBPSA1
Product Status active and preferred
Infineon Package AG-HDOPTXT
Package Name N/A
Packing Size 12
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-HDOPTXT
Package Name -
Packing Size 12
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

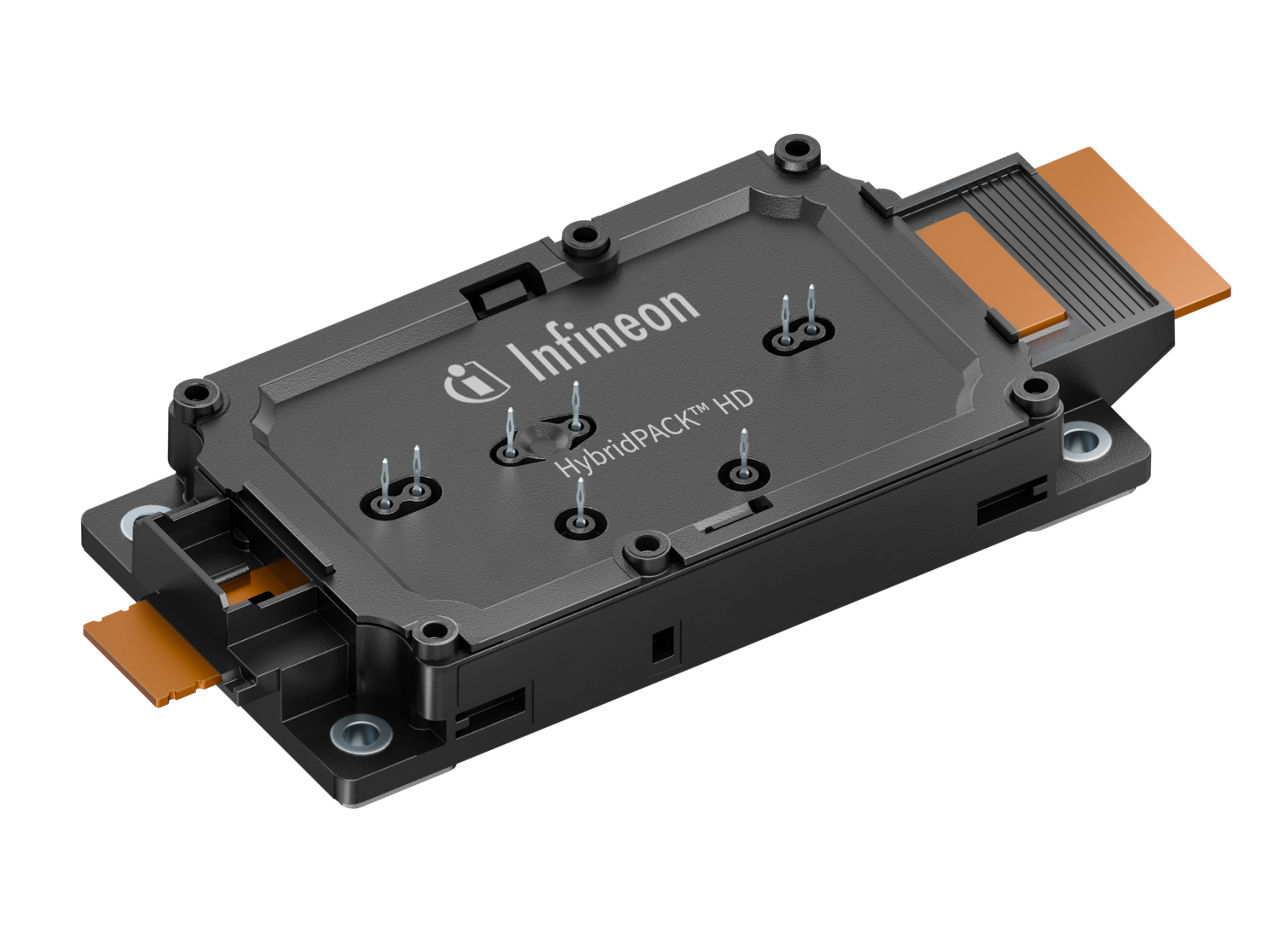

HybridPACK™ HD is a CoolSiC™ MOSFET 1400 V power module with .XT technology, purpose built to meet the toughest demands of heavy duty eCAV applications such as eTrucks, eBuses, and construction machinery. Its .XT, high performance joining technology with sintered chips & Cu bond wires is engineered for exceptional power cycling capabilities—supporting reliability & lifetime of over 1.5 million km.

Features

  • CoolSiC™ MOSFET 1400 V
  • Fast, efficient switching
  • .XT high performance joining technology
  • AQG 324, ISO16750 3, IPC9797
  • Enhanced vibration robustness for e-axle
  • 1500 Vdc ready creepage & clearance
  • Direct liquid cooling
  • Optimized thermal resistance
  • Low inductance DC tabs (~7 nH)
  • High current laser welded DC/AC tabs
  • Optional current sensor integration slot
  • Lead free

Benefits

  • ≥ 500 kW drive train converter
  • Enables 3-phase/1 motor architecture
  • Significant cost savings
  • Reduced hardware/software complexity
  • 1200 A RMS with stringent lifetime
  • Improved efficiency at higher RPM
  • Improved TCO: KWhr/km
  • Ready for high battery voltages and MCS
