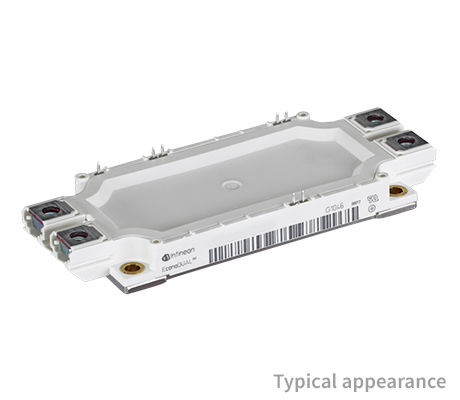

F4-250R17MP4_B11

1700 V, 250 A fourpack IGBT module
Data Sheet
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

F4-250R17MP4_B11
F4-250R17MP4_B11
Data Sheet

Product details

  • Configuration
    Fourpack
  • Dimensions (length)
    152 mm
  • Dimensions (width)
    62 mm
  • Features
    PressFIT
  • Housing
    EconoDUAL™ 3
  • IC(nom) / IF(nom)
    250 A
  • IC max
    250 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - P4
  • VCE(sat) (Tvj=25°C typ)
    1.8 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    1.8 V
  • Voltage Class max
    1700 V
Recommended
OPN
F4250R17MP4B11BPSA2
Product Status active
Infineon Package AG-ECONOD
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-ECONOD
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EconoDUAL™ 3 1700 V, 250 A fourpack IGBT module with Trench/Fieldstop IGBT4, Emitter Controlled diode and PressFIT Contact Technology in H-Bridge configuration.

Features

  • H-Bridge topology
  • High power density
  • Low VCEsat
  • Tvjop = 150°C
  • Trench IGBT 4
  • VCEsatwith positive temp. coeffi.
  • Isolated base plate
  • Standard housing
