Active and preferred
RoHS Compliant

F3L6MR20W2M1H_B70

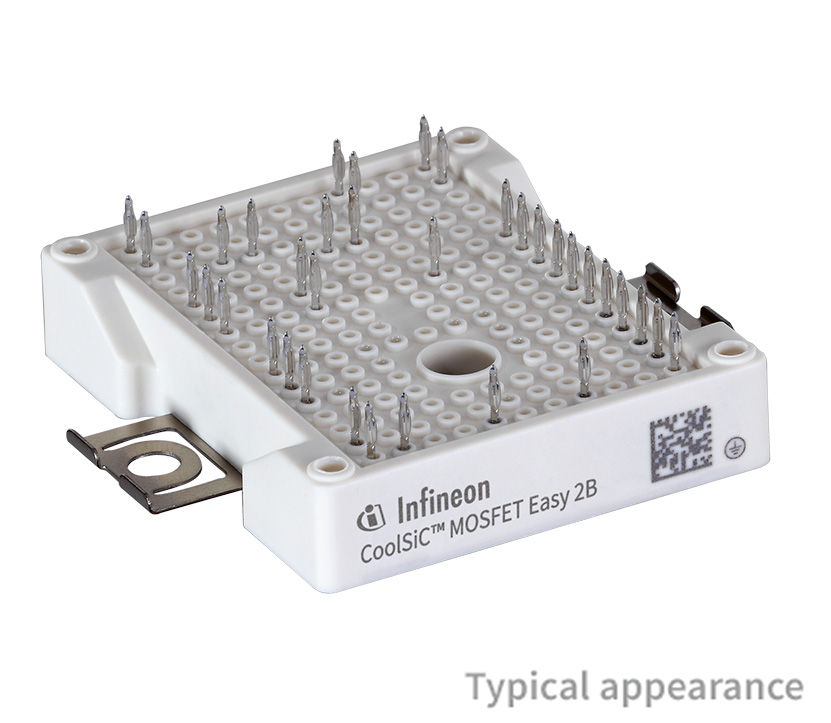

CoolSiC™ MOSFET 3-level module 2000 V
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

F3L6MR20W2M1H_B70
F3L6MR20W2M1H_B70
ea.
Data Sheet

Product details

  • Applications
    Solar, ESS, EV Charger, DC-DC Conerter
  • Configuration
    3-Level
  • Dimensions (length)
    62.8 mm
  • Dimensions (width)
    48 mm
  • Features
    PressFIT, AlN
  • Housing
    Easy 2B
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    5.1 mΩ
Recommended
OPN
F3L6MR20W2M1HB70BPSA1
Product Status active and preferred
Infineon Package
AG-EASY2B
Package Name N/A
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
AG-EASY2B
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EasyPACK™ 2B CoolSiC™ MOSFET 3-level module 2000 V, 6 mΩ with NTC temperature sensor, PressFIT Contact Technology and aluminium nitride ceramic.

Features

  • Best in Class packages with 12mm height
  • Leading edge WBG material
  • Very low module stray inductance
  • PressFIT pins
  • Integrated NTC temperature sensor
  • Wide gate source voltage range
  • Low switching & conduction losses
  • Overload operation up to 175°C

Benefits

  • Outstanding module efficiency
  • System cost advantages
  • System efficiency improvement
  • Reduced cooling requirements
  • Enabling higher frequency
  • Increase of power density
  • Compact design
  • Perfect fit for 1500 V DC-link
