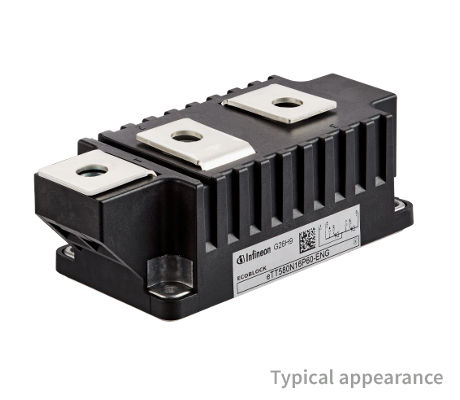

ETT630N18P60

60 mm Thyristor/Thyristor Module with 1800 V in pressure contact technology
Data Sheet
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ETT630N18P60
ETT630N18P60
ea.
Data Sheet

Product details

  • Configuration
    SCR / SCR Phase Control
  • Housing
    60 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    628/85
  • IFSM / ITSM [A] (@10ms, Tvj max)
    16800
  • Product Line
    Eco Block
  • rT [mΩ] (@Tvj max)
    0.341
  • RthJC [K/W] (@180° el sin)
    0.6
  • Tvj [°C]
    135
  • VDRM / VRRM [V]
    1800
  • VT0 [V] (@Tvj max)
    0.8
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    1411
Recommended
OPN
ETT630N18P60XPSA1 ETT630N18P60HPSA1
Product Status active and preferred not for new design
Infineon Package BG-PB60E2A-1 BG-PB60ECO-1
Package Name N/A N/A
Packing Size 2 2
Packing Type TRAY TRAY
Moisture Level NA NA
Moisture Packing NON DRY NON DRY
Lead-free Yes Yes
Halogen Free Yes No
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package BG-PB60E2A-1
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status not for new design
Infineon Package BG-PB60ECO-1
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Thyristor/Thyristor 60 mm Eco Block 1800 V, 628 A module for phase control in pressure contact technology . ETT630N18P60 is reduced to pure function with proven reliability. If you need higher performance use our TT780N18KOF .

Features

  • Re-designed pressure contact techn.
  • Short-on-fail capability
  • Best-in-class DC blocking capabil.
  • Higher operational temperature
  • Standard housing dimensions
